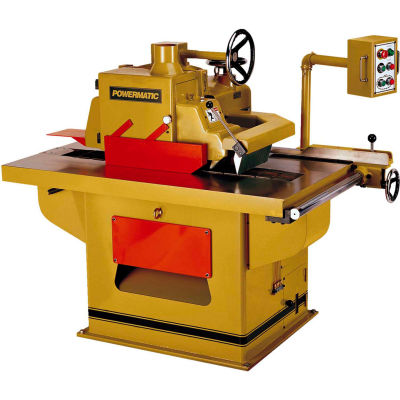

Powermatic 1791285 Model SLR12 15HP 3-Phase 230V/460V Rip Saw

Video - Click to Play
See all 2 items in product family

Powermatic 1791285 Model SLR12 15HP 3-Phase 230V/460V Rip Saw

Print

Item #: WBB57943

Sold By: globalindustrial.com

Usually ships in 2 to 5 days Estimated lead times do not include weekends or holidays. Transit time is determined by shipping method and destination. Orders requiring credit information might take additional time.

0 reviews | Write a review

List Price: $19,251.43 Save up to 12%
Price: $ 16,849.99

with FREE shipping today! (within the contiguous US)

Add to list

Customers Who Viewed This Also Viewed

Product Information
Customer Review
Product Q&A
Whether it's face frames, long runs or full production, the SLR12 Straight Line Rip Saw has every job covered. Powered by a 15HP main motor, this saw has the capacity for virtually any job. The 12 main blade mounts on a high alloy, heat treated arbor that is precision ground and dynamically balanced for maximum stability and long durability. The caterpillar feed chain blocks are constructed of special grade cast iron that is heat treated and precision machined. The track travels on hardened "V" way guides insuring rigidity and accuracy. A full brush cleaning system with auto-oiler and shut-off gives the conveyor a long service life. All of this is driven by a 2HP feed motor with variable speed to perfectly match the feed rates with your production and finish requirements. A series of seven stock hold downs keep each work piece flat and straight throughout the cutting cycle. Dual anti-kickback devices help prevent discharge of work pieces. The heavy-duty precision rip fence travels on a solid steel guide rail and is micro-adjustable for fast, accurate set up. Controls for rip width, cutting depth, main and feed motors are all mounted up front for fast job changes. The large cast iron table surface supports any size stock and the efficient dust collection port insures a clean work area. From the kiln or cutting glue line, get your production up and running today with the SLR12 from POWERMATIC®.

Features:

  • Full cast iron construction for rock-solid operation
  • 15HP Main Motor, 2HP Feed Motor for large production capacity
  • Auto-oiler with shut off ensures long conveyor chain life
  • Variable feed speeds to accommodate different type stock
  • Large 18 rip and 3-7/8" depth of cut capacities for virtually any job
  • Adjustable position control box for operator convenience

Documents are in PDF format

Product Specifications

    • TABLE SIZE (IN.)35 x 55
    • MAXIMUM DEPTH OF CUT (IN.)4
    • ARBOR DIAMETER (IN.)1
    • PRESSURE ROLLERS7
    • MOTOR HORSEPOWER15hp
    • DUST COLLECTION MIN. CFM REQUIRED600
    • MOTOR VOLTAGE230/460V (pre-wired 230V; 460V requires additional
    • DUST PORT DIAMETER INCHES4
    • BRANDPowermatic
    • FEED SPEED (FPM)30-125 variable
    • MAX. RIPPING WIDTH (IN.)18
    • FEED MOTOR HP2hp
    • MANUFACTURERS PART NUMBER1791285
    • BLADE SPEED (RPM)4500
    • FEED MOTOR PHASE3
    • MOTOR PHASE3
    • ELECTRIC CONTROLS24V Magnetic
    • PREWIREDPrewired 230V
    • TABLE HEIGHT (IN.)32
    • BLADE DIAMETER (IN.)12
