Abell-Howe® Under-Braced Wall Mounted Jib Crane 960006 500 Lb. Capacity 18' Span

Spanco 300 Series wall mounted jib crane requires no floor space or foundation. Cantilever design transmits less direct force to building column than tie-rod supported jibs and offers the greatest amount of clearance. Indoor service paint finish is standard; outdoor service, food grade service and seaside service available. Motorized options available.

Abell-Howe® Foundationless Base Mounted Light Duty Jib Crane 4L0014 500 Lb. Capacity The Abell-Howe J-904L Series was developed to be a foundationless jib for light duty industrial applications requiring only 6" concrete depth. Requires epoxy anchor bolts (HILTI RE-500 adhesive anchoring system required 4 1/2" embedment) Jib provides 360 degree rotation on a tapered roller bearing providing full capacity vertical and radial thrust loading. Concrete floor mush be at least 6" thick and contain wire mesh reinforcement, in minimum soil pressure of 2,500 psf and minimum concrete compressive ...

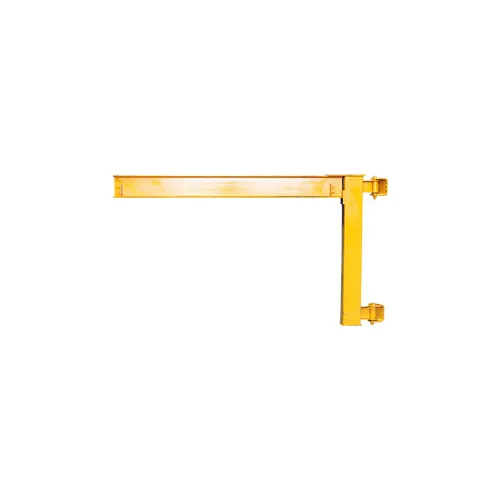

Wall JibThis Wall Jibs is designed to assist workers in the maneuvering of materials as well as achieving maximum headroom where low ceilings are of concern. The cantilever style jib crane mounts to true vertical wall members. Increases personnel productivity by lifting awkward materials. The overall I-beam length is 92" with a usable length of 80". Hoist and trolley can be ordered separately. 1,000 lbs capacity.

Spanco 301 Series wall mounted jib crane requires no floor space or foundation. Wall Bracket tie rod allows for maximum use of the work area, including working close to the crane's support structure (wall, column or truss). Indoor service paint finish is standard; outdoor service, food grade service and seaside service available. Motorized options available.

This Floor Mounted Jib adapts well to several applications. Full 360° rotation allows personnel to completely utilize their workstation. Solid steel construction will assist workers in lifting awkward material. The overall I-beam length is 80" with a usable length of 70". Requires reinforced concrete pad for installation. 600 lbs capacity.
