BIG BERTHA 12 Volt DC dump body vibrators are ideal for field or mobile applications, available in 12 & 24 DC, Factory set to 3500 lbs of force, 60 amps, 4000 RPM, special duty. Field adjustable force 1500 lbs to 3500 lbs. Mounting Kit (carbon steel mounting plate, bolts, and washers), & Wiring Kit (34 feet of #4 AWG cable, 20 feet #16MTW, 7 ring terminals, push button switch, solenoid, and circuit breaker) included for easy installation. Stainless Steel, Aluminum Mounting Plate and Channel Iron available.

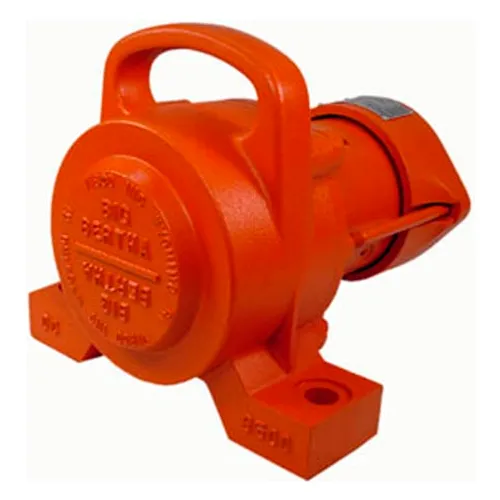

Vibco 12 Volt Electric Vibrator - DC-3500
|
Questions & Answers (0)
Product Description
PRICE
$1,155.00
1
1
Free Shipping Ships in 3 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy
Weights & Dimensions
| Length | 12 in |
| Width | 10 in |
| Height | 9.5 in |
| Dimension F | 1.375 in |
| Dimension C | 0.75 in |
| Dimension A | 8.5 in |
| Dimension S | 7.375 in |
| Dimension B | 9.25 in |
| Force Weight | 3500 lbs |
| Dimension E | 1.375 in |
Product Details
| Duty Cycle | Special |
| Amperage | 60 A |
| Series | DC |
| Enclosure Type | Totally Enclosed |
| Voltage | 12/24 V |
| Material | Cast Iron & Plastic |
| Phase | 1 |
| Manufacturers Part Number | DC-3500 |
| Force Newtons | 15572 N |
| Decibels | 70 |
| Brand | Vibco Vibrators |
