Zoeller

Model # :WBB985556

MPN #: 264-0002

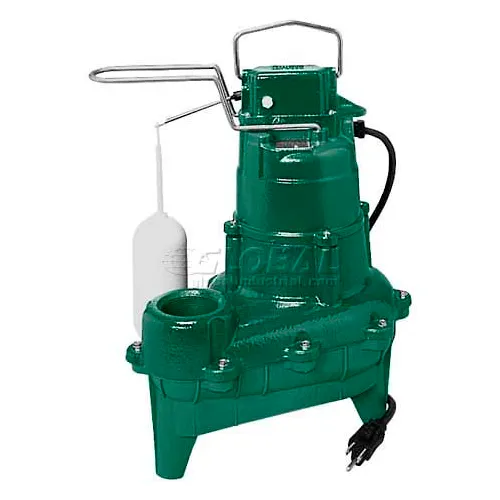

Zoeller Waste-Mate N264 Non-Automatic Submersible Sewage Pump 264-0002, 2/5 HP

Product Description
Zoeller N264 Waste-Mate non automatic submersible Sewage/effluent or dewatering pumps for variable level systems. Submersible pump with 1 1/2" NPT discharge which passes 3/4" spherical solids. The sizing of effluent systems normally requires variable level float(s) controls and properly sized basins to achieve required pumping cycles. Consult factory for special applications. Float operated, submersible (NEMA 6) 2 pole switch - Durable cast iron construction - switch cap, motor and pump housing - Engineered plastic base - Stainless steel screws, bolts, handle, guard, arm and seal assembly - Corrosion-resistant, powder coated epoxy finish - Hermetically sealed, automatic reset thermal overload protection - Upper and lower sleeve bearings running in bath of oil - Minimum recommended basin size 18"x 30".

PRICE
$469.95

1
1
Ships in 12 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy

Weights & Dimensions

Length12-1/4 in
Width12-1/4 in
Height14-3/4 in
Weight39 lbs
Cord Length15 ft
Switch Off Height4-1/2 in
Switch On Height12-1/2 in
Max Head18 ft
Max Diameter Solids2 in
Discharge Connection Size2 in
Min Sump Pit Diameter18

Product Details

Max Fluid Temperature130 °F
Rotations per Minute1725 rpm
Gallons per Minute90 gal/min
Impeller MaterialPlastic, Metal
MaterialCast Iron
Phase1
Discharge Connection TypeFNPT
Manufacturers Part Number264-0002
SubmersibleYes
Temperature of Liquid Pumped130
BrandZoeller
Solids HandlingYes
TypeSubmersible Sewage Pump
Horsepower2/5 HP
ColorGreen
Amperage9.4 A
SeriesWaste-Mate
Hertz60 Hz
Switch TypeNon-Automatic
Thermal ProtectionYes
Voltage115 V
Gallons per Hour5400 gal/hr
Includes15' Power Cord
Base MaterialThermoplastic
Shaft Seal MaterialCarbon, Ceramic

Warranty

Warranty3 yr

Compliance & Certifications

CertificationsCSA, SSMPA, UL
