Guardian Equipment

Model # :WBB313488

MPN #: G1909

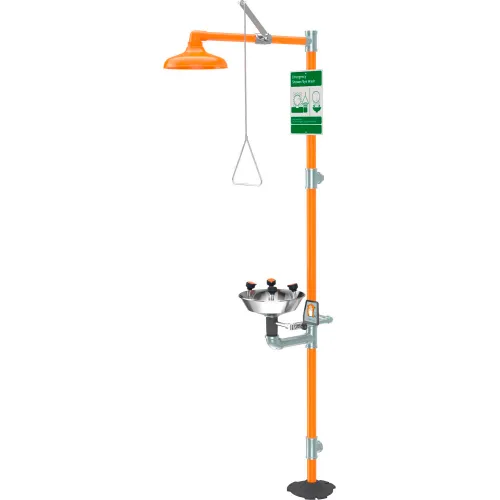

Guardian Equipment Safety Station with WideArea™ Eye/Face Wash, S/S Bowl, G1909

Product Description
Safety Station with WideArea™ Eye/Face Wash, S/S Bowl, G1909

  • Combination WideArea™ eye/face wash and shower safety station. Four GS-Plus™ spray-type outlet heads deliver a flood of water over a wide area of coverage for complete rinsing of eyes and face
  • 10 diameter orange ABS plastic shower head
  • 1 IPS chrome plated brass stay-open ball valve. Valve is US-made with chrome plated brass ball and PTFE seals. Furnished with stainless steel actuating arm and 29 stainless steel pull rod
  • Four GS-Plus™ spray heads. Each head has a flip top dust cover, internal flow control and filter to remove impurities from the water flow
  • 11 1/2 diameter stainless steel eye/face wash bowl
  • 1/2 IPS chrome plated brass stay-open ball valve. Valve is US-made with chrome plated brass ball and PTFE seals
  • Schedule 40 galvanized steel. Furnished with orange polyethylene covers for vertical piping for high visibility and corrosion resistance
  • 1-1/4 NPT female top or side inlet
  • 1+-1/4 NPT female outlet. Outlet can be positioned at either 8 or 20 above finished floor by reversing lower pipe nipples
  • Furnished with ANSI-compliant identification sign
  • Valve and spray head assemblies are factory assembled and water tested prior to shipment
PRICE
$1,169.00

1
1
Ships in 3 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy

Weights & Dimensions

Length33 in
Width17 in
Height90 in
Weight41 lbs
Shower Head Diameter10"
Bowl Diameter11-1/2 in
Outlet Size2-3/4 NPT Female in
Inlet Size1-1/4 NPT Female in

Product Details

TypeAll Purpose Station
Shower Head MaterialABS Plastic
Eye/Face Wash Spray Heads4
Eye/Face Wash ActivatorPush Handle
Mounting LocationFloor Mounted
DescriptionSafety Station with WideArea™ Eye/Face Wash
Bowl MaterialStainless Steel
Manufacturers Part NumberG1909
BrandGuardian Equipment

Compliance & Certifications

CertificationsANSI Z358.1 Standards Classified Primary
