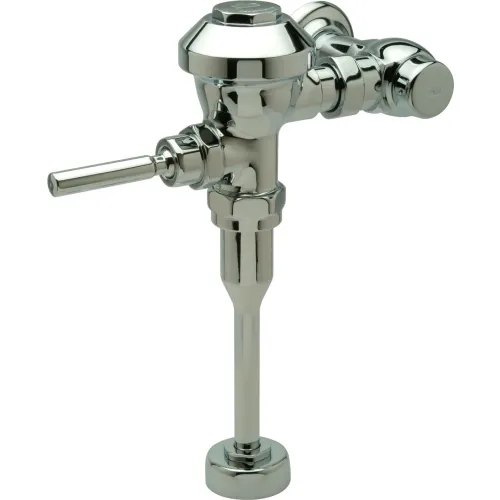

ZURN Z6003AV AquaVantage AV Exposed Urinal Flush Value - Exposed, quiet diaphragm-type, chrome plated flushometer valve with a polished exterior. Complete with ZURN's AquaVantage TPE, chloramine resistant, dual seal diaphragm with a clog resistant by-pass. The valve is ADA compliant with a non-hold open and no leak handle feature, high back pressure vacuum breaker, one piece hex coupling nut, adjustable tailpiece, spud couplng and flange for top spud connection. Control stop has internal siphon-guard protection, vandal resistant stop cap, sweat solder kit, and a cast wall flange with set screw. Internal seals are made of chloramine resistant materials.
Share
Spec Sheet
1.0 gpf Aqua Vantage Exposed Urinal Flush Valve
Write a Review
|
Questions & Answers (0)
Product Description
PRICE
$219.95
1
1
Ships in 6 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy
Specifications
Weights & Dimensions
| Spud Size | 3/4 in |
| Tailpiece Size | 3/4 in |
Product Details
| Gallons per Flush | 1 gal/flush |
| Finish | Chrome Plated |
| Flush Type | Manual |
| Series | Z6003AV-WS1 |
| Manufacturers Part Number | Z6003AV-WS1 |
| For Use With | Urinal |
| Liters per Flush | 3.8 |
| Spud Placement | Top |
| Brand | Zurn |
Compliance & Certifications
| ADA Compliant | Yes |
