- Anodized aluminum adapter
- Dimensionally interchangeable with recirculating ball bushings
- Equipped with liner made from iglide® J
- Temperature range -40°F to +194°F JUI-01 (standard), JUI-20 (low clearance)
*T500 liner optional for chemicals/high temps (up to 482°F for steel housing, 356°F for aluminum) - Suitable shafting for iglide® J: DryLin® AWI aluminum, case-hardened, 300 series
- Best shafting for T500: hard-chrome and hard stainless steel
IGUS RJUI-01-16 1" DryLin R Polymer Linear Bearing with Shell
Write a Review
|
Questions & Answers (0)
Product Description
Special Features:
PRICE
$35.95
1
1
Ships in 2 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy

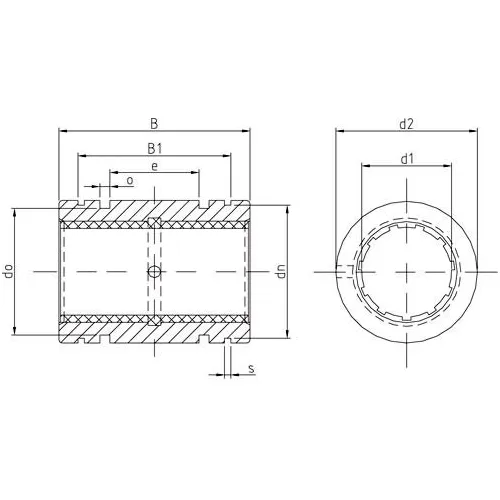

Weights & Dimensions
| Nominal Size | 3/8 in |
| Static Weight Load | 5678 lbs |
| Diagram Dimension S | .0740 |
| Dimension B1 | 1.773 |
| Static Load Rating | 5678 lbs |
| DR | 1 |
| Diagram Dimension Do | 1.3990 |
| Diagram Dimension E | 0.500 |
| Inside Dimensions | 1 |
| Dimension O | .1250 |
| Dimension B | 2.2500 |
| Diagram Dimension D2 | 3.0000 |
| Tolerance | 0.0016-0.0032 |
| Dynamic Weight Load | 811 lbs |
| Diagram Dimension Dn | 1.4710 |
Product Details
| Max Temperature | 194°F °F |
| Manufacturers Part Number | RJUI-01-16 |
| Brand | igus |
