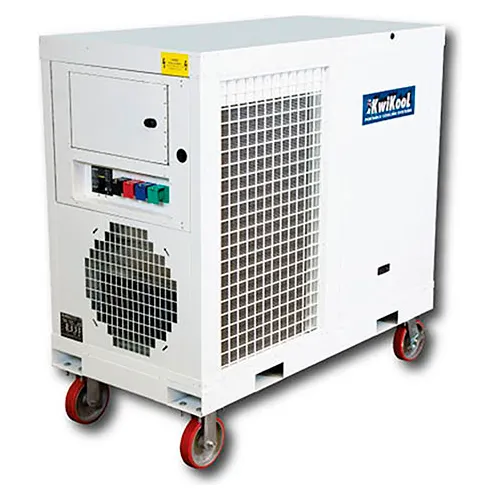

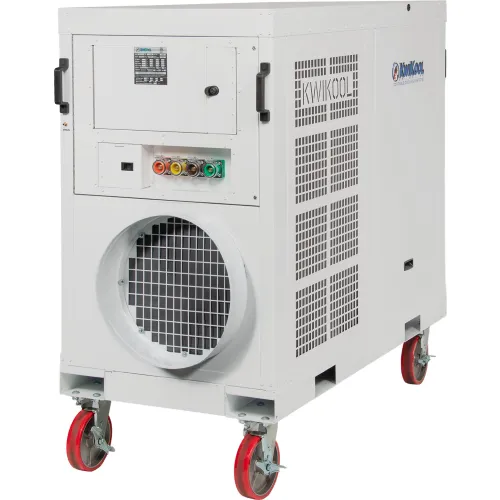

The Model KPO12-43 (12-ton or 135,000 Btu Cooling & 24-kW Heat Strips for 83,300 Btu of Heat) is the most versatile system in size and capabilities compared to machines with the same capacity. The KPO12-43 has an extremely small footprint for difficult applications with limited available space. The KPO12-43 model is 32" wide, 64" long, and 61.5" tall. The system is placed outside of the space being cooled with two 12" cold air supply and two 12" return ducts. The KPO12-43 runs on a 460-volt/40-amp 3-phase circuit with built-in cam lock connections for easy electrical hook up. A phase monitor provides the unit with electrical protection. The system will automatically shut down, if the voltage or phases are improper, which could damage the system's electrical components. In addition, the condenser motor has low ambient temperature capability using a variable frequency drive that allows the system to operate at temperatures down to freezing. The unit also comes standard with an internal high lift condensate pump to adequately remove condensation. And, KwiKool products are proudly made in USA. This product has a limited warranty of 1 year.
STANDARD FEATURES
- MADE IN AMERICA SOLID CONSTRUCTION - 12-Guage Base Frame with fork pockets and wheels allow easy movement.
- VERSATILE USAGE - Extremely small footprint - 32 inches wide for standard 36" door for Indoor or Outdoor applications.
- DYNAMIC A.C. AIR FLOW - High static blowers for maximum air movement & up to 75' ducting distance.
- QUICK INSTALLATION - Standard built-in cam lock connections for easy electrical hook up.
- ADVANCED MOTOR CONTROL - Variable Frequency Drive for low ambient condenser motor control.
- ELECTRICAL PROTECTION - Phase/ Power monitor provides component electrical protection.
