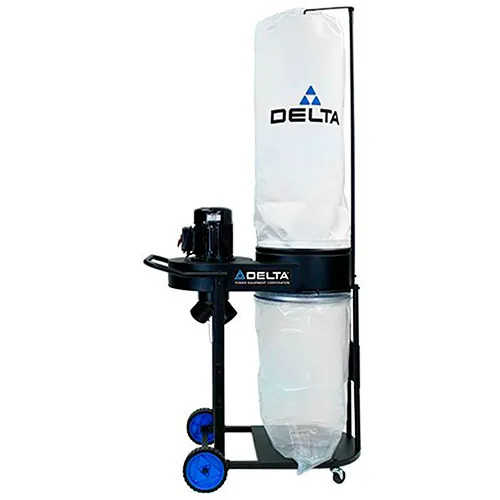

Delta 50-767T2 1HP 1,500CFM Dust Collector

Delta 50-767T2 1HP 1,500CFM Dust Collector

Item #: WBB2228916

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

Price: $561.00

$93.50/mo suggested payments with 6 month special financing OR Save 5%on Purchase.

Quantity

Customers Also Viewed

Delta 50-767T2 1HP 1,500CFM Dust Collector

  • The 50-767T2 includes motor and blower, support frame, 1 Micron Filtration Bag with Sewn-In Bag Ring, 6 mil plastic chip collection bag, (1) snap-in filter bag ring, (2) 4" intake ports, (2) swivel caster assemblies, two large 8" wheels, cord and plug.
  • Standard 1 micron filtration bag keeps your shop safer and cleaner Sewn in, snap-in filter bag ring is faster, easier and eliminates the need for cam-over-lock style clamps
  • Powerful TEFC induction motor for long-lasting, smooth performance with protection from damaging dust
  • 6 mil plastic chip collection bag shows you when the bag needs emptying
  • Sturdy steel base with four easy-gliding wheels for moving from machine to machine or for storing out of the way
Specifications:
  • Motor: 1-1/2 HP max, 120/240V (Wired 120V), 60 Hz, 1 Phase
  • Max CFM: 1500 CFM
  • Impeller Diameter: 11-1/2"
  • Standard Bag Filtration: 1 Micron
  • Maximum Static Pressure: 8" of water
  • Filter Bag Area: 20.5 sq. ft., 1.9 sq. m.
  • Chip Bag Area: 2.4 cu. ft.; 67L
  • Width: 24.5"
  • Length: 42.5"
  • Height: 92.5"


  • PREWIRED VOLTAGE 120
  • MOTOR PHASE 1
  • NUMBER OF AIR INLETS 2
  • MOTOR HORSEPOWER 1
  • COLLECTION TYPE Bag
  • VELOCITY @ 6" (FPM) --
  • AIR FLOW @ 6" (CFM) --
  • AIR INLET INCHES 4
  • VELOCITY @ 4" (FPM) --
  • PARTICLE SIZE (MICRON) 1
  • AIR FLOW @ 4" (CFM) 1500
  • AMPS 15
  • BRAND Delta
  • COLLECTION BAG LENGTH INCHES --
  • MANUFACTURERS PART NUMBER 50-767T2
  • COLLECTION BAG CAPACITY (CUBIC FEET) 2.4
  • FILTER BAG/CANISTER LENGTH INCHES --
  • BAG DIAMETER INCHES 20
  • SOUND RATING (DB) --
  • TYPE Dust Collection System
  • REMOTE CONTROL No
  • MODEL 50-767T2
  • VOLTAGE 110
  • HEIGHT INCHES 92.5
  • IMPELLER DIAMETER INCHES 11-1/2
  • LENGTH INCHES 42.5
  • 1-HOSE CONNECTION DIAMETER (IN.) 4
  • WIDTH INCHES 24.5
  • 2-HOSES CONNECTION DIAMETER (IN.) 4
  • STATIC PRESSURE (INCH OF WATER) 8.0
  • MAXIMUM AIR FLOW (CFM) 1500
  • AIR FLOW @ 8" (CFM) --
  • MANUFACTURERS LIMITED WARRANTY YEARS 5
