The UFO-104H1 by Kufo Seco is a powerful industrial grade dust collector suitable for wood working shops and industrial workshop. The UFO-104H1 features a 10 HP ( 220V or 440V / 60hz / 3 ph ) high performance TEFC motor (Totally Enclosed Fan Cooled Motor) With 6950 CFM of suction power. The UFO-104H1 is powerful enough for collecting up to 6 operating machines at the same time efficiently, and it is designed for all day long and daily operation production line use. UFO-104D equipped with a 9.5" opening with a "Y" shape hose adaptor (Included with package) that split into Five outlets for (4) 4" hoses, and the large 59.49 cu ft. bag capacity for easy maintenance. Operation under 440V requires additional component (DC104SWM44-sold separately) to be install and re-wire by certified electrician only.

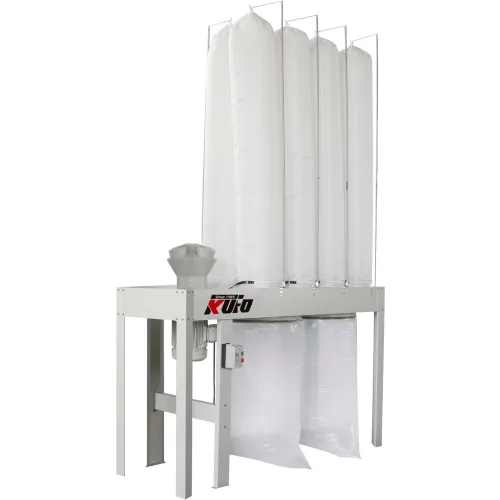

Kufo Seco 10HP 3 Phase Vertical Bag Dust Collector - UFO-104H1
Write a Review
|
Questions & Answers (0)
Product Description
PRICE
$6,049.00
1
1
Ships in 2 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy
Weights & Dimensions
| Length | 91 in |
| Width | 32-1/4 in |
| Height | 135 in |
| Weight | 600 lbs |
| Cord Length | 4' |
| Connection Diameter | 9-1/2" Inlet, 5" x (6) Y Fitting |
| Impeller Diameter | 17-1/2 in |
Product Details
| RPM | 3450 rpm |
| Type | Vertical Bag |
| Static Pressure (Inches of Water) | 18.25" in |
| Color | White |
| Number of Speeds | 1 |
| Amperage | 24/12 A |
| Sound Rating | 80-90 db (A) |
| Hertz | 60 Hz |
| Number of Stages | 3990 |
| Capacity | 29.75 ft³ |
| Voltage | 220/440 V |
| Material | Metal |
| Phase | 3 |
| Manufacturers Part Number | UFO-104H1 |
| Brand | Kufo Seco |
