Laguna

Model # :WBB3186152

MPN #: MDCPF15110

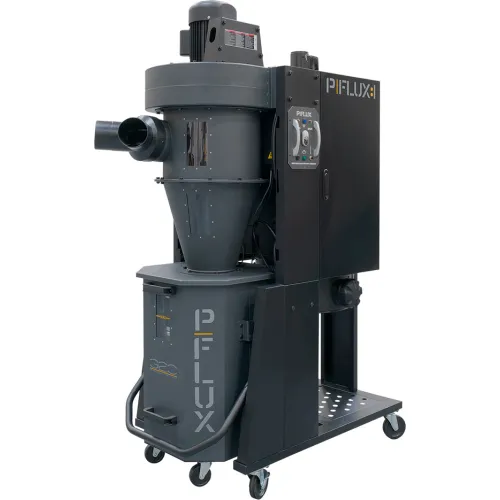

Laguna P|Flux: 1 Cyclone Dust Collector, 1314 CFM, 1PH, 1-1/2HP, 110/220V

Product Description
The P|Flux series gets a host of exciting new upgrades including an auto-cleaning feature standard on all models in this line. The auto-clean conveniently activates every 10 minutes, or you can simply activate from the sleek redesigned remote. The P|Flux: 1 features a 25-gallon octagonal, LED-illuminated drum. Plus, LED and audio warnings let you know when the drum is full – features that are now standard in this line.

Specs:
  • Motor Specs: 1-1/2HP
  • Electrical Specs: 110V/220V / 60Hz / 1PH / 3450 RPM
  • Running AMP: (with 6" inlet) 18.8A at 110V; 9.4A at 220V
  • Maximum Air Flow: 1314 CFM (Cubic Feet Per Minute)
  • Shop Setting Air Flow: 900 CFM
  • Max Static Pressure: 10.1"
  • Fan Size: 13-1/2"
  • Inlet: One 6" or Two 4" Ports
  • Auto Clean: 10 min. Interval 10 Seconds F+R
  • Remote Control: High Frequency
  • Collection Capacity: 25 Gallon Octagon Drum
  • Decibel Reading: 70 dB (@9.8ft)
  • Assembled Dimensions (L x W x H): 42" x 25" x 68"
  • Machine Weight: 232 lbs. (105 kg)
Filter Specs
  • Filtering Area: 48.4 sq/ft (4.5 sq/m)
  • Cartridge Filter: HEPA, 15-3/4" x 19-11/16" (40 x 50 cm) x 1pc
Shop Setting Air Flow measured with hoses connected to inlet.

The non-stick PTFE membrane has some disintegration after 200,000 cycles at the area where the cleaning paddles/arms touch the filter media. This does not largely affect the filtration efficiency. The HEPA filter media used on Laguna Cyclones are independently tested by an accredited 3rd party (TTRI). Designed with wide-spaced pleating to maintain optimum performance throughout filter lifespan.

PRICE
$3,949.00

1
1
Ships in 4 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy

Weights & Dimensions

Length42 in
Width25 in
Height68 in
Weight232 lbs
2 Hose Connection Diameter4 in
Air Inlet6 in
Connection Diameter6 & 4
Particle Size0.3 mic
Static Pressure10-1/8 in
1-Hose Connection Diameter6 in
Filter Bag/Canister Length19-11/16 in
Impeller Diameter13-1/2 in

Product Details

Prewired Voltage110/220 V
MaterialSteel
Phase1
Manufacturers Part NumberMDCPF15110
Motor Horsepower1-1/2 HP
BrandLaguna
TypeDust Collection System
Remote ControlYes
ColorGray
Amperage18.8/9.4 A
Sound Rating70 dB
Number of StagesSingle
Voltage110/220 V
Dust Collector TypeCyclone
Max Airflow1314 CFM

Warranty

Warranty2 yr
