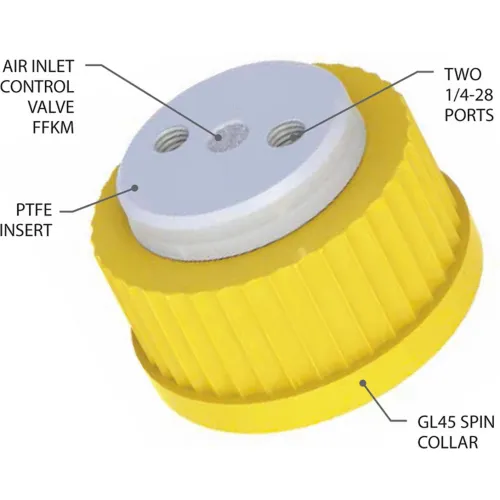

The main benefit of this port cap is that the check valve has been integrated into the bottle cap, allowing air to safely enter the cap when fluid is pulled out. The check valve components are upgraded to FFKM and will resist virtually any solvent used in the laboratory. The remaining wetted surfaces are (Teflon®-equivalent) PTFE.
- Closed System Design
Reduce chemical evaporation and exposure to hazardous vapors with this solvent reservoir port cap, which uses a secure fluid connection and a built-in air inlet valve to maintain pressure equilibrium within the bottle. - 1/4-28 Port Threads
Designed to accept industry-standard 1/4-28 threaded fittings. For use with semi-rigid tubing equal to or less than 1/8" (3.2mm) outside diameter. Ports are angled 10° for more accessible tubing connections. - Anti-Twist Design
To prevent twisting of tubing when the cap is removed or attached, the inner body rotates independently of the outer collar when loosened. - Chemically Compatible
Constructed of inert PTFE, the body of the cap provides ideal chemical compatibility with laboratory solvents. Under normal use, the outer Polypropylene collar is non-wetted. Caps may be autoclaved to 140°C. Please inquire for other material options and custom designs. - 1/4-28 Compression Fittings
Designed for liquid-tight connection of semi-rigid tubing to flat-bottom 1/4-28 port threads, for tubing diameter 1/8" OD. Each connection is comprised of a two-piece nut and ferrule system, useful for pressurized applications under 500 psi. Blue and yellow fittings color-coded by tubing size for easy identification. These bottom-sealing UNF fittings do not require PTFE tape.
