Features:

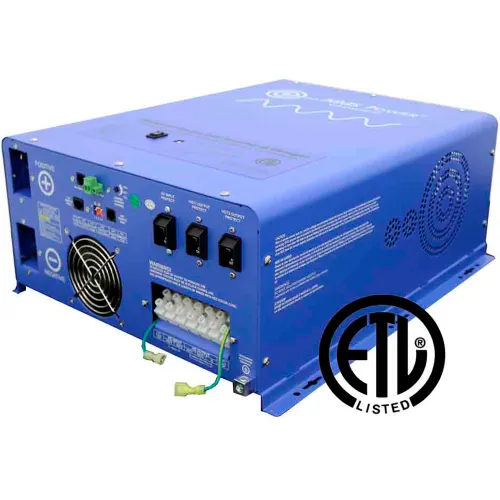

- 6000 watt low frequency inverter
- 18000 watt surge for 20 seconds 300% surge capability
- Battery Priority Selector
- Terminal Block
- Marine Coated and Protected
- Multi Stage Smart charger 30 Amp
- remote panel available
- auto frequency
- 10msec typical transfer time
- optional 25W power save mode
- 7 battery type settings for charger
Inverter Output Specifications:
- Continuous Output Power: 6000 Watts
- Surge Rating: 18000 Watts (20 Seconds)
- Output Waveform: Pure Sine/Same as input (Bypass Mode)
- Nominal Efficiency: >88% (Peak)
- Line Mode Efficiency: >95%
- Output Frequency: 50Hz +/- 0.3Hz / 60Hz +/- 0.3Hz
- Typical Transfer Time: 10ms (Max)
- THD: < 10% DC
Input Specifications:
- Nominal Input Voltage: 24.0Vdc
- Minimum Start Voltage: 20.0Vdc
- Low Battery Alarm: 21.0Vdc-22.0Vdc
- Low battery Trip: 20.0Vdc-21.0Vdc
- High Voltage Alarm: 32.0Vdc
- Low battery Voltage Restart: 31.0Vdc
- Idle Consumption: <52.5 Watts
- Power Saver Mode Idle Consumption: <25 Watts
Charger Specifications:
- Output voltage: Depends on battery Type
- Charger Rate: 30A
- Over Charge Protection Shutdown 31.4V
- Selectable Charge setting based on battery type
- Adjustable charge current off-20%-100%
- Four Stage Smart Charger
Transfer Switch Specifications:
- 30 amp automatic transfer switch
- 10 ms (max)
Dimensions
- Unit Weight: 108 lbs.
- Unit Size L x W x H: 19 x 16.5 x 8 inches
- Shipping Weight: 113 lbs.
- Shipping L x W x H 30.5 x 14.25 x 13.75 inches
