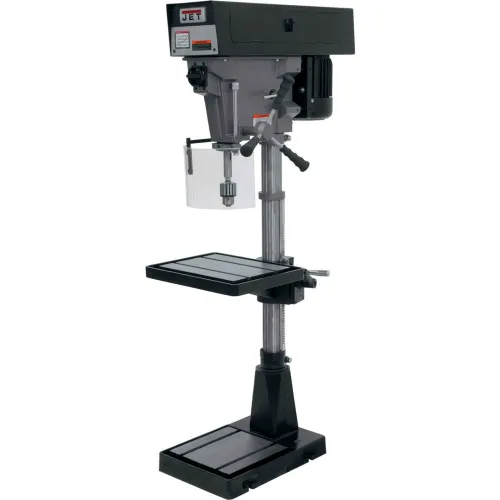

Jet 354500 J-A3816 15 6-Speed Floor Model Drill Press, 115/230V, 1-Phase
JETÆs heavy-duty 6-speed Step Pulley Drill Press are manufactured with the weight and rigidity to maintain the tight tolerances required of metalworking applications. The oversized, massive drill heads have widely spaced bearing surfaces for full quill support throughout its travel. JET included a wider range of operation speeds for drilling both small and larger holes with quick and easy speed changes
Features:
JETÆs heavy-duty 6-speed Step Pulley Drill Press are manufactured with the weight and rigidity to maintain the tight tolerances required of metalworking applications. The oversized, massive drill heads have widely spaced bearing surfaces for full quill support throughout its travel. JET included a wider range of operation speeds for drilling both small and larger holes with quick and easy speed changes
Features:
- Constructed to provide a solid base for drilling
- Offers a greater range in spindle speeds than others in this class
- Larger quill provides greater accuracy
- Large production work table gives the operator the room to work and support for the job
- 3 Column for head support, while the quill is also supported to lessen deflection
Weights & Dimensions
- Quill Travel 6 in
- Spindle Travel 6 in
- Spindle Distance To Table (Max) 44-1/2 in
- Quill Diameter 2-1/4 in
- Base Slots Number & Size 2 X 1/2 in
- Chuck Size 1/2 in
- Table Size (L x W) 15 X 18 in
- Column Diameter 3 in
- T-Slots Number And Size 2 & 1/2 in
- Base Dimensions 30 x 20 in
- Drills to Center of Circle 15 in
- Base Work Table 12-1/8 X 11-13/16 in
- T-Slots Centers 5-5/16 in
- Spindle Distance To Base 44-1/2 in
- Size 15 in
Product Details
- Spindle Taper 2 MT
- Motor Voltage 115/230 V
- Drilling Capacity Mild Steel 1/2
- Range of Spindle Speeds 375, 625, 1,125, 1,950, 3,400, 5,000 rpm
- Motor Horsepower 1 HP
- Style Floor
- Work Table Weight Capacity 90 lbs
- Drilling Capacity Cast Iron 5/8
- Number of Spindle Speeds 6
- Motor 1 HP, 115/230VAC, 1 Ph, Prewired 115VAC
- Prewired 115V
- Phase 1
- Brand JET
- Warranty 2-Year Warranty
- Manufacturers Part Number 354500
