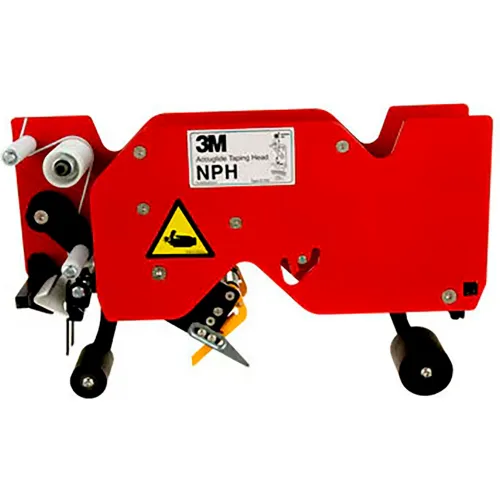

3M™ AccuGlide™ NPH+ Lower Taping Head, 3"

Designed to be used in the 800asb Case Sealer. The taping head applies a C clip of Scotch™ brand pressure-sensitive film box sealing tape to the bottom center seam of regular slotted containers. The design of this taping head allows it to be mounted in the upper or lower taping locations. The compact size and simplicity of the taping head also makes it suitable for mounting into other box conveying systems to tape cartons. This includes replacement of other types of taping, gluing or stapling heads in existing case sealing machines.Heads available to apply 36mm to 48mm tape widths ...

The 3M™ AccuGlide™ taping head features a curvilinear design that applies tape securely with low impact to help protect even lightweight cartons and contents. Designed to apply a "C" clip of Scotch® box sealing tape, the 3M™ AccuGlide™ 3 taping head seals center seams at speeds of up to 40 cases/min. Designed to apply 2-3" tape at 100 ft/min case speed when mounted on 3M-Matic™ case sealers. Taping Process: A regular slotted container is placed on the conveyor and pushed onto the drive belts of a 3M-Matic™ case sealer, which convey the box into the 3M™ ...

The 3M™ AccuGlide™ taping head features a curvilinear design that applies tape securely with low impact to help protect even lightweight cartons and contents. Designed to apply a "C" clip of the Scotch® box sealing tape, the 3M™ AccuGlide™ 3 taping head seals center seams at speeds of up to 40 cases/min. It is designed to apply 2-3" tape at 100 ft/min case speed when mounted to 3M-Matic™ case sealers. The taping head can be use with the 3M-Matic™ case sealers that include 800rf, 800af, 800a, 800r, 700a,700r, 200a and 800ab. Taping Process: A regular slotted ...

The HST Lower Taping Head applies 48mm wide C-clips of tape at case speeds of up to 150 ft./min. Unique precision shaft and ball bushing slide ensure precise application. Heads can be mounted for upper or lower right and left side applications. Cases are securely and precisely sealed.

✓Curvilinear design for low impact taping to help protect even lightweight cartons and contents ✓Applies tape widths of 1.5-2" (36-48mm) at conveyer speeds of up to 78 fpm ✓Engineered for durability, low maintenance and consistent tape application ✓Low profile side plate, open tape path and easy-to-follow labeling allow fast, easy threading ✓Friction brake drum to maintain proper tape tension and prevent overcoasting ✓Buffing and applying rollers are designed for easy removal ✓Tape drum latch secures roll for stability ...
