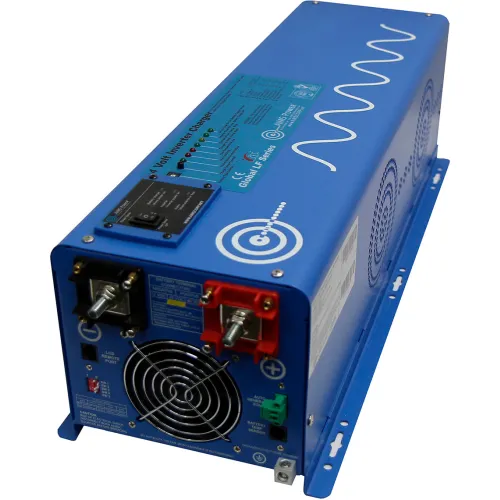

The AIMS Power low frequency 4000 Watt 48-volt, split phase 120/240 Vac power inverter charger is not your average every-day power inverter. This is a top-of-the-line power inverter, built for the purpose of running your whole house (smaller home), business office or large RV. This inverter charger is perfect for your off grid system or for use as an emergency backup supply. Built with a 48 volt DC input, this inverter performs with very little power loss. Users receive a notable increase in efficiency in large systems when compared to using inverters that accept 12 or 24 volts.
The 4000 watt inverter charger can utilize 240V grid power to charge the batteries and send the power out to your application using the built-in 40 amp charger. If the grid power is lost, this inverter is equipped with a seamless automatic transition transfer switch, becoming a true UPS (Uninterruptable Power Supply) when you need it in emergency situations and natural disasters (battery required).
This inverter charger also comes with an Auto Generator Start mode that can tell a generator to start up and begin providing charge to the batteries (through a separate charger on 240V gensets).
Features:
- 4000 watt low frequency inverter 110-120 Volt
- 12000 watt surge for 20 seconds -3x surge capability
- Battery priority selector
- AC direct connect terminal block
- Marine coated and protected
- Multi stage smart charger 40 Amp
- Remote panel available
- Auto gen start
- Battery temp sensor available
- Resettable circuit breakers
- 10msec typical transfer time
- Optional 25W power save mode
- 7 battery type settings for charger
- Continuous output power: 4000 Watt
- Surge rating: 12,000 Watt (20 seconds)
- Output waveform: pure sine/same as input (bypass mode)
- Output voltage: 100-110-120/220/230/240 VAC – split phase 120 & 240Vac
- Nominal efficiency: >88% (peak)
- Line mode efficiency: >95%
- Output frequency: 50Hz +/- 0.3Hz / 60Hz +/- 0.3Hz
- Typical transfer time: 10ms (Max)
- THD: < 10% DC
- Nominal input voltage: 48 VDC
- Minimum start voltage: 44 VDC
- Low battery alarm: 42 Vdc-44 VDC
- Low battery trip: 40 VDC-42VDC
- High voltage alarm: 64 VDC
- Low battery voltage restart: 62 VDC
- Idle consumption: 1.67 amps DC
- Power saver mode idle consumption: <.83 amps DC
- Output voltage: depends on battery type
- Charger rate: 40A
- Selectable charge setting based on battery type
- Adjustable charge current off-20%-100%
- Four stage smart charger
- 33 amp @ 120 Vac and 16 AMP @ 240 Vac automatic transfer switch (bypass)
- 10 ms (max)
- Unit size: L x W x H: 23.5"x 8.74" x 7.10"
- Shipping size: L x W x H: 30.5" x 14.25" x 13.75"
- Unit weight: 64 lbs.
- Shipping weight: 75 lbs.
Output Specifications:
Input Secifications:
Charger Specifications:
Transfer Switch Specifications:
DImensions:
