TPI

Model # :WB294472

MPN #: PBS48BHL

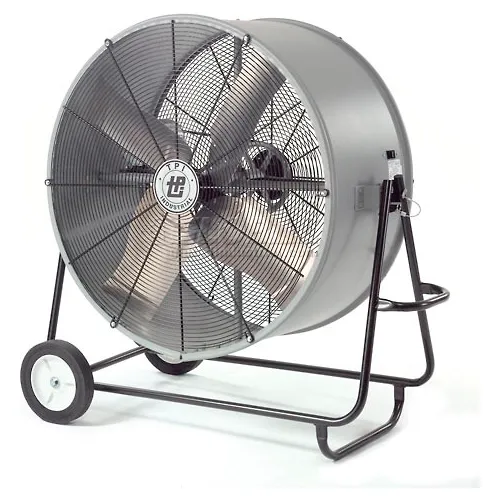

TPI 48" Hazardous Location Portable Barrel Fan w/ Swivel Base, 14,400 CFM, 1 HP, 1 Phase

Product Description
This TPI industrial fan features permanently lubricated ball bearing type motors. Blower fans have corrosion and dent proof high density polyethylene housing. Includes spiral wire safety guards. Hazardous Location models have single-phase explosion proof dual voltage motors (120/240V) with external junction boxes rated for Class 1, Group D and Class 11, Groups E, F and G UL listings, and do not include power cord. Includes 4 aluminum blades. 2 wheel cart base permits drum to tilt 360° at 12-1/2° increments to direct airflow vertically. Drum locks into place with steel locking pin. This portable fan includes 10" hard rubber wheels. It meets OSHA standards. It is UL Listed , cETL Listed. This product has limited warranty of 1 year. Horsepower rating based upon maximum speed/load.

PRICE
$3,829.00

1
1
Ships in 11 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy

Weights & Dimensions

Width65 in
Depth30 in
Height64 in
Weight198 lbs
Fan Diameter48 in

Product Details

Assembly RequiredNo
Max Ambient Temperature100 °F
Number of Speeds2
Fan TypeIndustrial
Number of Blades4
Motor TypeExplosion Proof
Mounting LocationFree Standing
Wattage3600 W
MaterialPolyethylene
Phase1
Blade TypeAluminum
Manufacturers Part NumberPBS48BHL
Indoor/OutdoorIndoor
BrandTPI
RPM390 rpm
TypeDrum Fan
CFM14400 CFM
Horsepower1 HP
ColorGray
Amperage15 A
Drive TypeBelt Drive
Hertz60 Hz
RPM High390 rpm
Voltage120 / 240 V
CFM High14400 CFM
Package Quantity1
DescriptionIndustrial Drum Fan
Oscillating/Non OscillatingNon Oscillating
Watts3,600 W
Decibels73

Warranty

Warranty1 yr

Compliance & Certifications

CertificationsOSHA, UL, cETL Listed
