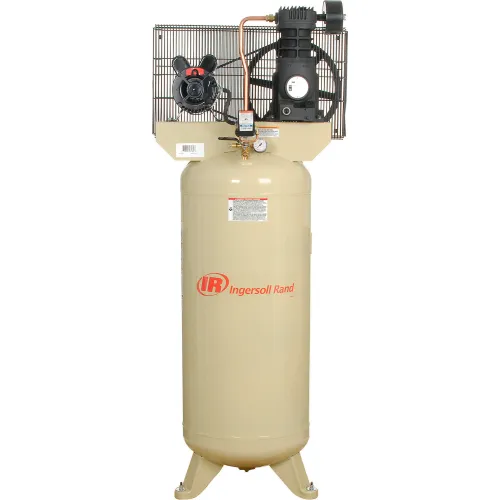

Ingersoll Rand SS5L5, 5 HP, Single-Stage Comp, 60 Gal, Vertical, 135 PSI, 18.1 CFM, 1-Phase 230V, With Start-up Kit
Installs in shops for reliable commercial use. The durable cast iron cylinder and frame ensure long service life. 5 HP electric single stage motor is splash lubricated, has continuous duty cycle. Motor has manual thermal overload protection and quiet operation and operates without a starter. ASME National Board coded receiver tank includes discharge mounted check valve, pressure gauge, drain valve, service valve, and relief valve. 220 volts.
Automatic start/stop pressure switch has manual on/off lever. Totally enclosed belt guard provides shield around the flywheel, belt and motor sheave for safety. Regulator included. Meets OSHA standards. UL, CSA and ASME compliant. 1 Year Limited Warranty.
Ingersoll Rand SS5L5, 5 HP, Single-Stage Comp, 60 Gal, Vertical, W/Start-up Kit, 1-Phase 230V
Write a Review
|
Questions & Answers (0)
Product Description
PRICE
$2,199.00
1
1
Free Shipping Ships within 1 Business Day
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy
Weights & Dimensions
| Length | 20 in |
| Width | 30 in |
| Height | 71 in |
| Weight | 310 lbs |
| Tank Size | 60 gal |
| Tank Outlet | 1/2" |
Product Details
| Oil Type | Oil Lubricated |
| Air Dryer | No |
| Oil System | Splash Lubricated |
| Pump Drive | Belt Drive |
| Pump Material | Cast Iron |
| Tank Drain Valve | Manual |
| Max PSI | 135 psi |
| Phase | 1 |
| Tank Orientation | Vertical |
| Oil Sight Glass | Yes |
| Manufacturers Part Number | 20103180 |
| Pump Type | Single-Stage |
| Low Oil Shutoff | No |
| Brand | Ingersoll Rand |
| Type | Single-Stage |
| CFM | 18.1 CFM |
| Horsepower | 5 HP |
| Color | Tan |
| After Cooler | No |
| Voltage | 230 V |
| Air Filter | No |
Warranty
| Warranty | 1 yr |
Compliance & Certifications
| Certifications | UL/CSA/ASME |
