AIMS Power

Model # :WBB1789562

MPN #: PWRINV8KW12V

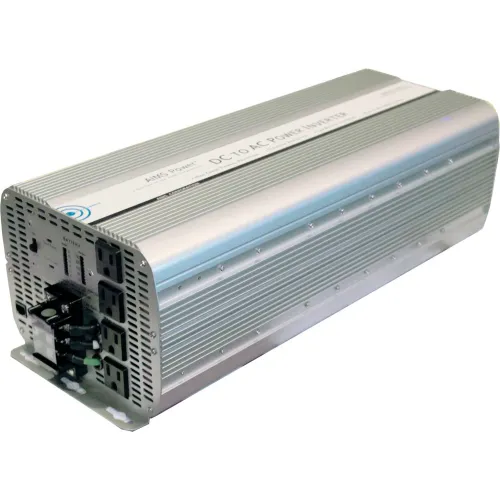

AIMS Power 8000 Watt Power Inverter, PWRINV8KW12V

Product Description
This is the new, 8000 watt modified sine wave inverter! Smaller, lighter, more efficient and longer lasting than it's predecessor. This unit has a 16kw surge for 40ms for your high startup quick-surge applications. This unit is space saving and beating out the competitions 8Kw 12 volt units. You can use less cabling, fit it in more mobile applications when you need a lot more power for saws, drills, compressors and other power tools. Use it in your camper, toy hauler, or RV when you're boondocking or dry camping. This is like having a mobile power station in your home, boat, work truck or van and more.
  • 8000W max continuous power Modified sine wave with Pulse Width Modulation technology (soft start)

    Features:
    • Volt meter on front panel to monitor your battery voltage
    • Amp meter on front panel to monitor your current use (rate at which battery is drained)
    • Over Temperature LED indicator
    • Over Load LED indicator
    • AC direct connect terminal block
    • On/off switch
    • Over Temperature protection
    • Over Load protection
    • Dual cooling fans thermally controlled
    • Internally fuse protected
    • AC output short circuit protection
    • Auto reset on most fault conditions
    • Aluminum case for optimal cooling
    • Pre-wired for remote on/off switch
    • Pre-slotted mounting plate
    • Instruction manual
    • Free 1 year tech support
    • 1 Year Warranty Parts and Labor


    Specifications:
    • Continuous output power: 8000 Watts
    • Surge power capability (peak power): 16000 Watts
    • dc input / operating voltage: 10 to 15 Volts
    • Output voltage: 120 Volts ac +/- 10%
    • Output wave form: modified sine wave with phase correction
    • Output frequency: 60 Hz +/- 1 Hz
    • Battery low voltage alarm: 10.5 +/- 0.5 Volts
    • Battery low voltage shutdown: 10.0 +/- 0.5 Volts
    • No load current: < 1.3 DC amps
    • Full load efficiency: 90%
    • 1/3 load efficiency: 95%
    • No load minimum operating temperature: -15 degrees Celsius
    • Full load maximum operating temperature: 55 +/- 5 degrees Celsius (automatic shutdown)
    • AC Output Socket Type: quadruple Type 2 -3 prong
    • High input voltage protection: 15V-17V
    • Low input voltage shutdown: 10V Internal fuse protection
    • Product size (L x W x H): 19" X 7" X 6.5"
    • Weight: unit 19lbs boxed 24 lbs
    • UL maximum recommended per outlet 1500W
    • This inverter requires 2 sets of 4 AWT cable if you are going to run at 8000 watts.


  • PRICE
    $860.28

    1
    1
    Ships within 1 Business Day
    Add or Change Zip Code(s)
    Easy online or call-in returns. Read return policy

    Weights & Dimensions

    Length19 in
    Width7 in
    Height6-1/2 in
    Weight24 lbs

    Product Details

    Continuous Output Power8000 W
    No Load Current<1.3 DC Amps A
    Manufacturers Part NumberPWRINV8KW12V
    Output Voltage120 VAC V
    Outlet Socket Type4 Outlets, UL rated 1500W Max Each. Includes Term. Block Option for Full 8000W
    DC Input Voltage12 VDC
    BrandAIMS Power
    Internal Fuse ProtectionYes
