American Forge & Foundry

Model # :WBB2428178

MPN #: 3598

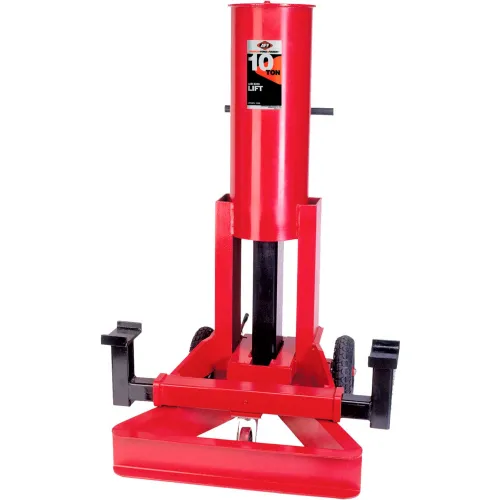

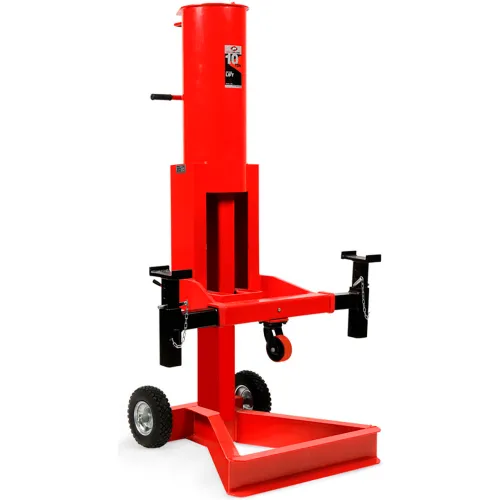

American Forge & Foundry Air End Lift, 10 Ton

Product Description
10-Ton capacity achieved at 200-PSI air supply. Three-way air valve for fine lifting and lowering control. 4" x 6" steel saddles adjust between 36" and 50" widths. Saddle arms reversible for low height loads. 13" Forward reach (distance from cylinder to saddles). Automatic mechanical safety lock engages at five lift heights from 17-1/2" to 50". Two air control valve fittings – one for shop air supply and one for a Schrader valve. Front swivel caster and two pneumatic rear tires for easy maneuverability. Ship wt. 750lbs. Capacity: 10 Tons. The AFF Air End Lift is designed with an extra-wide stance to lift the entire front or rear of large trucks, buses, industrial, heavy-duty construction equipment, and large farm vehicles. 1 Year Limited Warranty.

PRICE
$4,559.00

1
1
Ships in 5 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy

Weights & Dimensions

Length39 in
Height67 in
Reach13 in
Low Height12-1/2 in
Max Height50 in

Product Details

Capacity10 Ton
DescriptionAir End Lift
Manufacturers Part Number3598
PSI200 psi
BrandAmerican Forge & Foundry

Warranty

Warranty1 yr

Compliance & Certifications

Certifications2014 ASME/PASE Safety Standards
