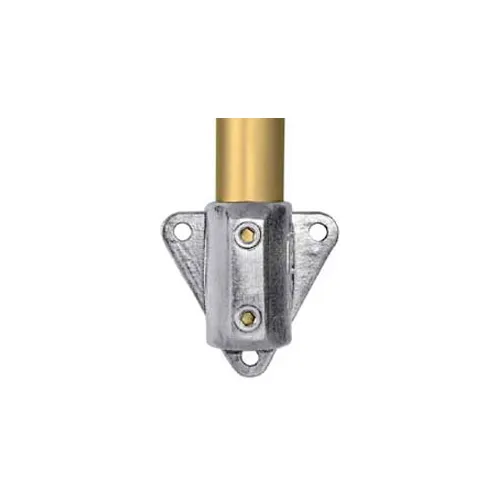

Kee Safety - L68-8 - Aluminum Wall Flange, 1-1/2" Dia.

Kee Klamp® Fittings Parapet Flange A component designed to retrofit roof parapets that are an unsafe height. Rail anchor is angled 25 degrees from the vertical so that the building's visage is unaffected by the implemented railing. Two holes are located in the top mounting bracket for mounting directly into the parapet. The two set screws in the vertical socket give greater side-load stability to the angled upright.

Kee Klamp® Fittings Railing Support This fitting, with holes provided for countersunk flat head screw fixings only, is designed to carry handrails along walls or to fix structures back to walls. The pipe passes through the fitting and cannot be joined within the fitting. Type 70 is also used to attach toeboards to the bases of guardrail uprights. Warning: These fittings are not to be used as base flanges for full height guardrails. 5/16" diameter fixing holes.

Kee Klamp® Fittings Rail Flange Ideal when a structural fixing is required. When fixing guardrailing and balustrades, Type 62 should always be used. The holes are of sufficient diameter to insure proper fixing with either a mechanical or chemical anchor. The two set screws in the vertical socket give greater sideload stability to the upright. It is recommended that the fixing holes in the flange should be in line with the applied load. 5/16" diameter fixing holes.

KEE KLAMP® FITTINGS MEDIUM FLANGE This flange, with holes provided for countersunk head fixing screws only, is used on structures where the fixing required is positional only. Frequently used as a wall-fixing bracket. 1/4" diameter fixing holes. PA Warning: It is not recommended for use as a base flange to support guardrailing or balustrading.

Kee Klamp® Fittings Round Base Flange This structural base flange can be used when fixing guard railing or balustrades. There is a single mounting hole located inside the fitting. This allows for a cleaner look. The two set screws in the vertical socket give greater side-load stability to the upright.
