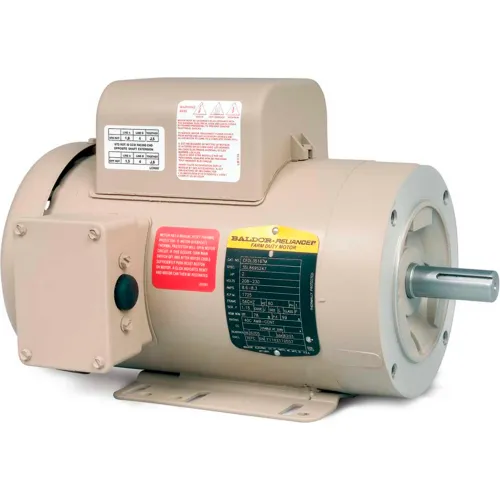

Baldor-Reliance Motor, .75HP,1725RPM,1PH,60HZ,56C,3432LC,TEFC,F
Features:
Wide variety of agri-duty and industrial applications.
Features:
- Ball bearings, lubricated with high temperature moisture-resistant grease
- Condensation drains
- Gasketed cast conduit boxed
- Farm duty epoxy paint for protection from harsh environments
- 1.00 Service Factor
Wide variety of agri-duty and industrial applications.
Weights & Dimensions
- Dimension C 13.35 in
- Opposite End Bearing Size 6203
- Weight 37
Product Details
- Power Factor 75
- Mounting Location No Mounting
- Bearing Drive End 6203
- RPM 1725 rpm
- Poles 4
- Drive End Flange C-Face
- Ambient Temperature 40 °C
- KVA Code M
- Insulation Class B
- RPM Range 1701-1800 rpm
- Voltage 115/230 V
- Frame 56C
- Service Factor 1.25
- Horsepower 3/4 HP
- Enclosure Type Totally Enclosed
- Is_Motor Yes
- Phase 1
- Enclosure TEFC
- Full Load Efficiency 74
- Brand Baldor-Reliance
- Full Load Amps 8.8/4.4 FLA
- Design Code N
- Motor RPM 60 Hertz 1725 rpm
- Hertz 60 Hz
- Manufacturers Part Number CFDL3507M
