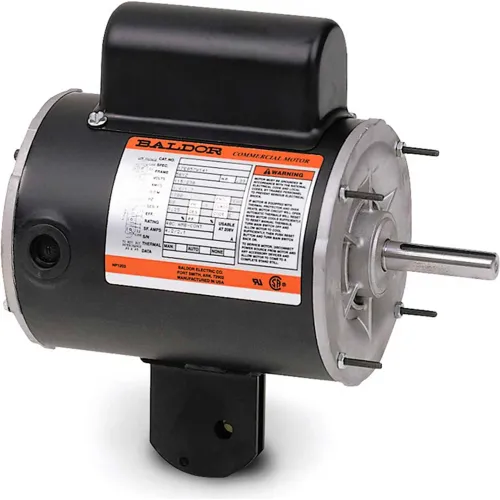

Baldor-Reliance Motor YPC345A, .5HP, 1625RPM, 1PH, 60HZ, 56YZ, 1716C, TEAO, F1

Baldor-Reliance Motor YPC345A, .5HP, 1625RPM, 1PH, 60HZ, 56YZ, 1716C, TEAO, F1

Item #: WBB392005

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$616.00 up to 39% OFF

Price: $376.95

Save $18.85 with 5% off when you use your Global Industrial Credit Card.

Quantity

Customers Also Viewed

Baldor-Reliance Motor RL1206A, .33HP, 1725RPM, 1PH, 60HZ, 56, 3414L, OPEN, F1

Baldor-Reliance Motor RL1206A, .33HP, 1725RPM, 1PH, 60HZ, 56, 3414L, OPEN, F1

Split Ring Imp S/S 2"

Split Ring Imp S/S 2"

Marathon Motors Commercial Motor, X602, 56C17D2102, 1/2HP, 115/208-230V, 1725RPM, 1PH, DP

Marathon Motors Commercial Motor, X602, 56C17D2102, 1/2HP, 115/208-230V, 1725RPM, 1PH, DP

Baldor-Reliance Motor CHM344A, .5 AIR OVERHP, 1725RPM, 3PH, 60HZ, 48Z, 1716M

Baldor-Reliance Motor CHM344A, .5 AIR OVERHP, 1725RPM, 3PH, 60HZ, 48Z, 1716M

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Free Shipping

US Motors Pump, 1 HP, 3-Phase, 3450 RPM Motor, EE506

US Motors Pump, 1 HP, 3-Phase, 3450 RPM Motor, EE506

Marathon Motors Explosion Proof Motor, G654A, 056C17G5316, 1/2HP, 115/208-230V, 1800RPM, 1PH, EPFC

Marathon Motors Explosion Proof Motor, G654A, 056C17G5316, 1/2HP, 115/208-230V, 1800RPM, 1PH, EPFC

Baldor-Reliance Motor, .5HP,1625RPM,1PH,60HZ,56YZ,1716C,TEAO,F1

Features:
  • 1.0 service factor
  • 40°C ambient
  • Automatic thermal overload
  • Ball bearing
  • Class B insulation
  • Extended thru-bolts on 5.13 inch bolt circle for mounting fan shroud
  • Heavy gage steel yoke with 180° slot for wide angle rotation
  • Permanent split capacitor
  • Pull chain switch (2spd only) for high and low speed
  • Reversible rotation
  • Shaft slinger
  • Terminal panel with quick connections
Typical Applications:
Designed for air circulation

Weights & Dimensions

  • Dimension C 10.48 in
  • Weight 20 lbs

Product Details

  • Mounting Location Yoke/Pedestal
  • RPM 1625 rpm
  • Thermal Select N
  • Poles 4
  • Drive End Flange Standard
  • Ambient Temperature 40 °C
  • KVA Code E
  • Insulation Class B
  • RPM Range 1501-1700 rpm
  • Voltage 115 V
  • Frame 56YZ
  • Service Factor 1
  • Horsepower 1/2 HP
  • Enclosure Type Totally Enclosed
  • Is_Motor Yes
  • Enclosure TEAO
  • Phase 1
  • Full Load Efficiency 68
  • Brand Baldor-Reliance
  • Full Load Amps 5.6 FLA
  • Design Code N
  • Motor RPM 60 Hertz 1625 rpm
  • Hertz 60 Hz
  • Manufacturers Part Number YPC345A
