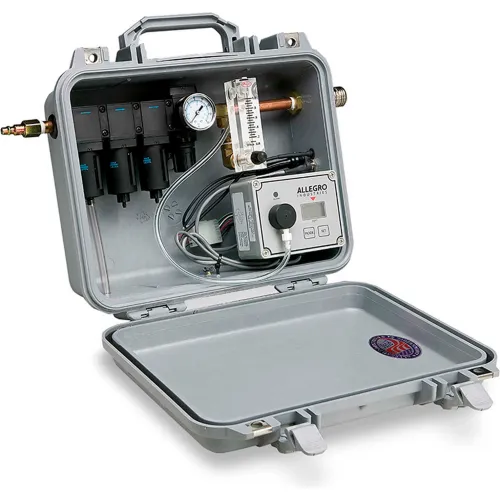

Allegro 9873 Breathing Carry-Air™ Filtration Panel, 1 Worker, CO Monitor

Allegro's Deluxe Supplied Air Shield and Welding Helmet is performance proven and a cost effective system used by foundries, aluminum plants, mines, chemical plants, refineries, auto manufacturers, metal working and fabrication. The Supplied Air Respirator delivers a constant and powerful supply of breathable air from a clean air source. They include one shield/ welding helmet, a ¾ hp ambient air pump and 50 feet of breathing hose. NIOSH approved/ANSI certified "all in one" system provides respiratory, head, eye and face protection.

Features: 100 CFM Filtration 123 CFM Flow Capacity 3 Stage, Grade-D Filtration Filter Change Indicators on All Filters 1/2" Hansen 5000 Series Plug Inlet, Maximum Inlet Pressure 150 PSI (2) Automatic Drains w/Discharge Tubes, (1) Manual Drain 115 VAC, 9-12 VDC, 60 Hz CO Monitor Installed, Set at 10 PPM per OSHA (5 PPM for Canada) 4-Outlet Solid Aluminum Block Manifold (1/4" Schrader Style) External Warning Lights & Alarm Pressure Regulator Safety Relief Valve Set @ 125 PSI Visual Air Flowmeter to Monitor Mounted on Powder Coated White Steel Panel Replacement Filter Kit: BB100-FK Monitor ...

Features: 120 VAC 88 dBa Audible Alarm and Visual Strobe Conduit Box Cable Available: ELCB052 is Sold by Foot and Rated for Heavy Duty & Outdoor Use No Cable Length Restriction For Use with Air Systems" Panel Mounted Filtration Models May Run up to (14) Alarms on (1) Panel For use with Panel Mounted Filtration Systems - i.e. BB30-COPM, BB50-COPM, etc.

Allegro's Deluxe Supplied Air Shield uniquely provides all in one head, eye, face and respiratory protection against hazardous airborne contaminates and flying debris. It delivers a constant and plentiful supply of clean purified air. Allegro's superbly balanced Deluxe Supplied Air Shield System is offered as a complete system for one worker. They include one shields, ¾ hp ambient air pump and 50 feet of breathing hose. Complies with ANSI Z87.1+.

Allegro air filtration panels filter impurities and hydrocarbons from an air compressor to convert to breathable air. A CO monitor is integrated to meet OSHA requirements for continuous monitoring of carbon monoxide levels. The panels provide 60 CFM (101.94 m3 /hr) or 100 CFM (169.9 m3 /hr) of air within a 5-125 PSI (.34-8.62 bar) range. The unique design of these panels allows each regulator to be individually adjusted at different pressure settings, allowing as well, separate outlets to be used for air tools (fittings used for breathing air must not be compatible with other plant/tool ...
