Bell & Gossett

Model # :WBB46936

MPN #: 102226

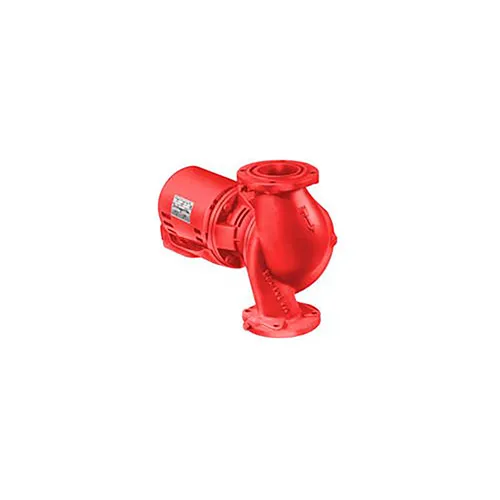

Cast Iron HD3 Pump .33 HP Single Phase

Product Description
three piece design oilable, repairable pump - sleeve bearing design, flexible spring design coupler, mechanical seal. Max. working pressure 125 psi, max. temperature 225 degrees F; 250 degrees F with optional high temperature seal. Made in the USA.
PRICE
$3,699.00

1
1
Ships in 2 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy

Weights & Dimensions

Inlet Connection NPT3 in

Product Details

RPM1725 rpm
Horsepower1/3 HP
Amperage4.2 / 2.1 A
Flange Face to Face10
Max Temperature225 °F
Pressure125 psi
Motor TypeODP
Impeller MaterialSteel / Zinc Plated
Matching Connecting IncludedNo
Voltage115/ 208 / 220 / 230 V
Phase1
Manufacturers Part Number102226
Respirator Connection TypeFlange
Housing MaterialCast Iron
BrandBell & Gossett

Warranty

Warranty18 mo
