Bell & Gossett

Model # :WBB46942

MPN #: 102210

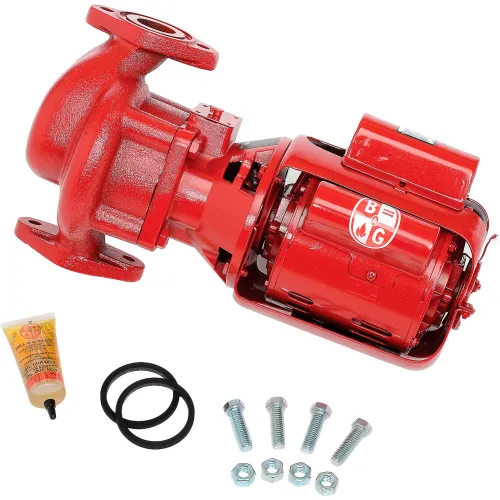

Three-Piece Cast Iron HV Series 100 NFI Circulator Pump 102210 - 1/6 HP

Product Description
Three-Piece Cast Iron HV Series 100 NFI Circulator Pump 102210 - 1/6 HP Single Phase
three piece design oilable, repairable pump - sleeve bearing design, flexible spring design coupler, mechanical seal. Max. working pressure 125 psi, max. temperature 225°F; 225°F with optional high temperature seal. Made in the USA.
PROMOTIONAL PRICE
$1,259.28

was $1749.00
Save $489.72 (28%)
1
1
Ships in 2 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy

Weights & Dimensions

Inlet Connection NPT3/4;1; 1-1/4; 1-1/2 in

Product Details

RPM1725 rpm
Horsepower1/6 HP
Amperage1.9 A
Flange Face to Face8-1/2
Max Temperature225 °F
Pressure125 psi
Motor TypeODP
Impeller MaterialPhenolic
Matching Connecting IncludedNo
Voltage115 V
Phase1
Manufacturers Part Number102210
Respirator Connection TypeFlange
Housing MaterialCast Iron
BrandBell & Gossett

Warranty

Warranty18 mo
