Mounts between pendant arm and HMI enclosure to provide both swivel and tilt options for the machine operator. A 90-degree elbow is incorporated into this design. Swivel allows 300-degree maximum rotation. Tilt allows infinite adjustment from horizontal to 30 degrees. Cast aluminum finished in RAL 7035 light-gray polyester powder paint. Installation hardware, mounting fasteners and gasket are included. Maximum load is 66 lb. (30 kg).
Share
Spec Sheet

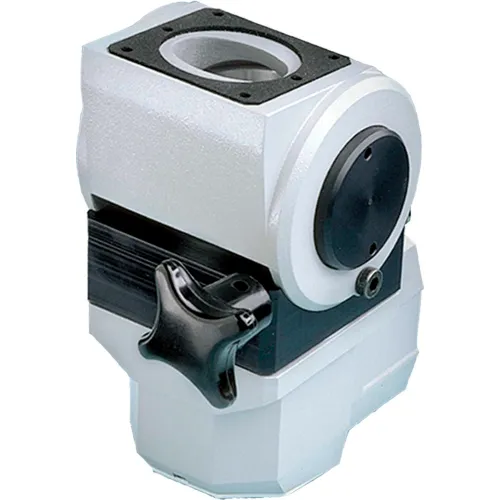

Hoffman CCS2ESTLG, Swivel Tilt/90 Elbow, P. Arm, Fits 45X60Mm, Alum/Ltgray
Write a Review
|
Questions & Answers (0)
Product Description
PRICE
$1,709.00
1
1
Ships within 1 Business Day
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy
Specifications
Weights & Dimensions
| Weight | 8 |
Product Details
| Material | Aluminum |
| Description | Swivel Tilt 90-Degree Elbow |
| Color | Gray |
| Manufacturers Part Number | CCS2ESTLG |
| Fits | 45x60mm |
| Brand | Hoffman |
