Chicago Pneumatic

Model # :WB702162

MPN #: 8941077620

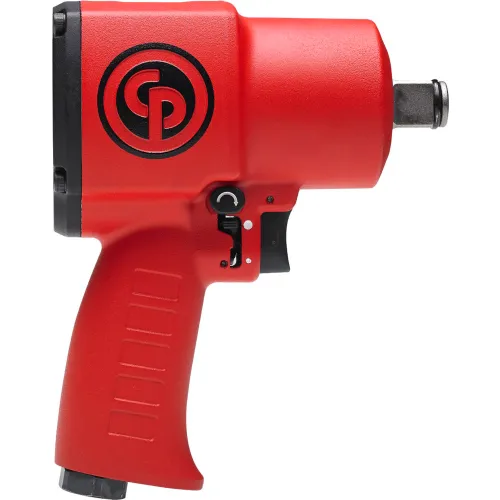

Chicago Pneumatic Air Impact Wrench, 3/4" Drive Size, 1050 Max Torque

Product Description
Chicago Pneumatics' new CP7762 impact wrench is ultra compact, lightweight, powerful and designed to work into tight spaces and get access to confined bolts for instance within engine compartments. Measuring just 6.2" (158.7mm) in length and weighs a mere 6.6 lbs. (3.0 kg). Small but powerful, the CP7762 is equipped with a rugged steel motor that delivers a powerful 1050 ft. lbs (1420 Nm) in reverse for high productivity. Featuring a twin hammer action and an aluminum housing, the CP7762 is capable of delivering optimum performance in the toughest operating environment.

Operator comfort is an integral part of this new stubby impact wrench's design. This is evident in the fact that the CP7762 is a well-balanced tool and features an ergonomic P-handle with full teasing trigger. The controls are designed and positioned for ease of use and include a one hand forward and Reverse speed regulator button as well as a side-to-side forward and reverse system.

Features

  • 6.2 in / 158.7 mm length for restricted working areas
  • 6.6 lbs. / 3.0 kg for less operator fatigue
  • 1050 ft. lbs / 1420 Nm in reverse for high productivity
  • Side2Side forward and reverse system
  • Full teasing trigger
  • One hand Forward & Reverse speed regulator button
  • Steel motor
  • Twin Hammer mechanism
  • Aluminum housing
  • Ergonomic P-handle with full teasing trigger
  • Perfect weight distribution




PRICE
$539.00

1
1
Free Shipping Ships in 3 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy

Weights & Dimensions

Length6-3/16 in
Weight6 lbs
Min Hose Size1/2 in
Air Inlet3/8 in
Max Torque1050 lb-in
Drive Size3/4 in
Working Torque150 - 670 lb-ft

Product Details

RPM4850 rpm
CFM57 CFM
SCFM Use @ 90 PSI8.78 SCFM
Max Temperature4850 °F
ClutchTwin hammer
Tool TypeImpact Wrench
Air ConsumptionActual 16.4 l/s / Average 4.1 l/s CFM
Handle TypePistol
StyleCompact / Stubby
DescriptionAir Impact Wrench
Manufacturers Part Number8941077620
Socket RetainerFriction Ring
BPM960
Average CFM8.78 CFM
Sound Level103.8 db(A)
Free Speed4850 rpm
BrandChicago Pneumatic
