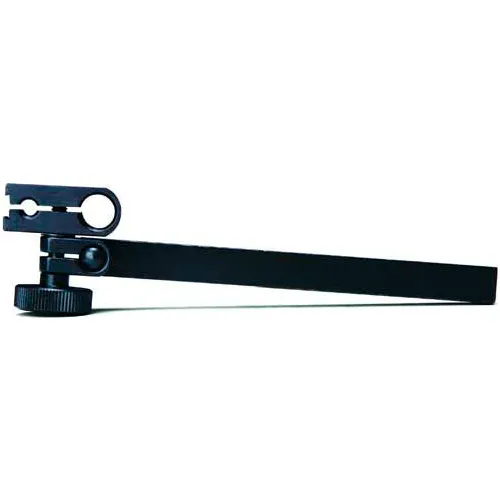

INSIZE Dial Test Indicator Holder, 6293-3

iGAGING® Premium Extended Range Test Indicator Features: Range: 0.060" IP67 protective rating: Water and coolant proof US PATENTED Graduation: 0.0005" Reading: 0-15-0 Face dia.: 1 1/2" Satin chrome fi nish Universal positioning contact 2-side standard dovetail mount Jeweled movement Meet or exceed Federal specifi cations 3/8" & 5/32" dovetail stems included Contact point: 0.080" dia x 1/2" length Supplied in protective case.

Premium Dial Test Indicator Features: Range: 0.030" Graduation: 0.0005" Reading: 0-15-0 Face dia.: 1 1/4" Satin chrome fi nish Universal positioning contact 3-side standard dovetail mount Jeweled movement Meet or exceed Federal specifi cations 3/8" & 5/32" dovetail stems included Contact point: 0.080" dia x 1/2" length Supplied in protective case

The Mahr MarTest 800 V (4302200) delivers precision measurement with ±0.4mm range and 0.01mm graduation. Vertical dial orientation provides clear readings during setup and inspection. High-contrast dial face sealed with O-ring resists coolant and debris ingress. Mineral glass viewing panel protects against scratching and hot shavings. Matt chrome-plated casing with three integrated dovetail guide rails. Shockproof mechanism with 8 jeweled bearings. DIN 2270 compliant. Includes 2mm carbide stylus, mounting shaft, and case.

The Mahr MarTest 800 SGM (4308200) delivers high-resolution measurement with ±0.1mm range and 0.002mm graduation for precision applications. 38mm dial diameter provides enhanced readability. Error limit of 3μm with 2μm hysteresis ensures accuracy. High-contrast dial face with O-ring seal and mineral glass viewing panel resist damage and solvent exposure. Matt chrome-plated casing with three dovetail guide rails. Shockproof mechanism with 0.15N measuring force. DIN 2270 compliant. Includes 2mm stylus, mounting shaft, test certificate, and case.

The Mahr MarTest 800 SL (4306200) features an extended 41.24mm stylus for accessing recessed features and confined spaces. Range of ±0.25mm with 0.01mm graduation. High-contrast dial face sealed with O-ring for liquid resistance. Mineral glass viewing panel protects against scratching and solvent damage. Matt chrome-plated casing with three dovetail guide rails. Shockproof mechanism with jeweled bearings and overload protection. Ideal for deep-bore and hard-to-reach measurements. Includes mounting shaft, test certificate, and case.
