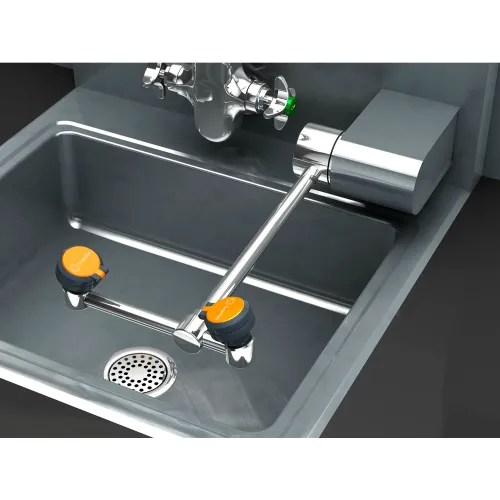

Application: Auto Flow™ eyewash for mounting on wall. Spray heads swing down from storage to operational position, activating water flow. Available in a variety of spray head configurations to minimize obstructions at a sink. Note: If unit is not installed at a sink, floor drain should be provided underneath unit to prevent accumulation of water on floor.
Spray Head Assembly: Two GS-Plus™ spray heads. Each head has a "flip top" dust cover, internal flow control and filter to remove impurities from the water flow.
Valve: 1/2" IPS plug-type valve with PTFE coated O-ring seals. Swinging head assembly from storage to operational position opens orifice and activates water flow. Unit remains in operation until head assembly is returned to storage position.
Strainer: Unit is furnished with in-line strainer to protect valve and spray heads from debris in water line.
Mounting: Valve is installed in Type 316 stainless steel housing. Mount housing on wall using anchors or other mounting hardware.
Construction: Polished chrome plated brass.
Supply: 1/2" NPT female inlet.
Sign: ANSI-compliant identification sign.
Quality Assurance: Unit is completely assembled and water tested prior to shipment.
Guardian Equipment Eyewash Station, Wall Mount
Write a Review
|
Questions & Answers (0)
Product Description
PRICE
$599.00
1
1
Ships in 6 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy
Weights & Dimensions
| Length | 13 |
| Width | 7-5/16 in |
| Height | 23 in |
| Weight | 7 lbs |
| Inlet Size | 1-1/4 NPT Female in |
Product Details
| Color | Silver |
| Eyewash Flow Rate | 3.2 gal/min |
| Pipe Material | Chrome Plated Brass |
| Number of Heads | 2 |
| Mounting Location | Wall |
| Includes | Hi-Visibility Identification Sign; Inspection Tag; Nylon Flip-Top Dust Cover |
| Material | Brass |
| Activation | Swing Down |
| Valve Type | 1/2" IPS Plug-Type |
| Manufacturers Part Number | G1848 |
| Eyewash Flow Pressure | 30-80 psi |
| Eyewash Activation | Auto Flow Valve |
| Brand | Guardian Equipment |
Compliance & Certifications
| ANSI Certification | Z358.1-2014 |
| ADA Compliant | No |
