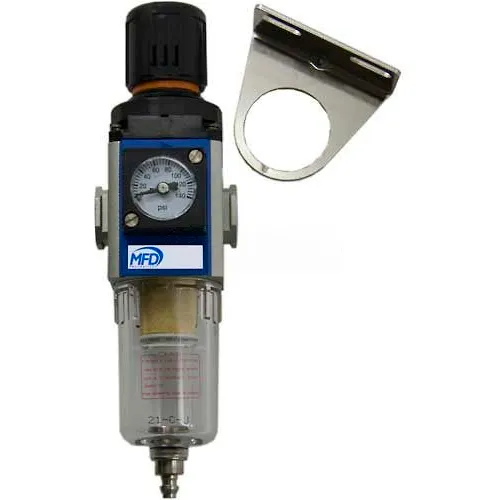

Bimba-Mead Filter/Regulator MGAFR300-10-SM, Auto Drain, Polycarb. Bowl W/Metal Bowl Guard, 3/8" NPT

MGAR series regulators boast excellent regulation and flow characteristics at an economical price. Available port sizes range from 1/8" NPT to 1" NPT. The push-to-lock knob assures the desired outlet pressure is maintained. Reverse flow is available with the MGARK option. Features: Body Material: Aluminum Type: Relieving / Press-to-lock adjustable knob Pressure Ratings: 7 to 130 PSI / 7 to 60 PSI (low pressure) Temperature Range: -4⁰ F to 158⁰ F All "in-stock" regulators ship the same day Includes: Gauge / Bracket / Nut / 2 Gauge Locations

Mini in line disposable desiccant dryer removes all traces of dirt dust water vapor oil vapor and more. Replace unit when desiccant changes color from blue to pink. Can be installed in either direction. Ideal for paint spray guns and applications requiring clean supply of air.

This 3/8" NPT Milton micro filter is supplied with pre-assembled automatic overnight drain 3 stage baffle system and a porous bronze 40 micron filter element. Micro filters remove harmful water or oil condensate pipe scale dirt and rust from compressed air systems. The metal bowl has a bowl capacity of 6 ounces. Maximum of 150 PSI and 48 SCFM.

This 3/4" NPT heavy duty coalescing filter metal bowl is designed for applications that require air free of oil and all foreign particles. This 10 ounce capacity metal bowl includes an automatic overnight drain for convenience. With a maximum pressure of 250 PSI this coalescing filter offers up to 60 SCFM. The .03 micron filtration and low pressure drop make this filter ideal for body shop spray painting food processing and instrumentation.

MGAFB series coalescing filters protect sensitive pneumatic equipment by removing oil mist and contamination down to 0.3µm or 0.01μm. Fine fibers in the filter media collect microscopic particles and the outer filter drainage layer allows coalesced liquid to fall into the filter bowl. They can be mounted inline or connected directly to the other FRL components via available modular connector kits. Features: High performance glass fiber filtering element 0.3µm or 0.01µm (99.9% efficiency) filtration rating Pressure range: 20 to 145 PSI 1/8 NPT to 1/2 NPT port sizes Available with ...
