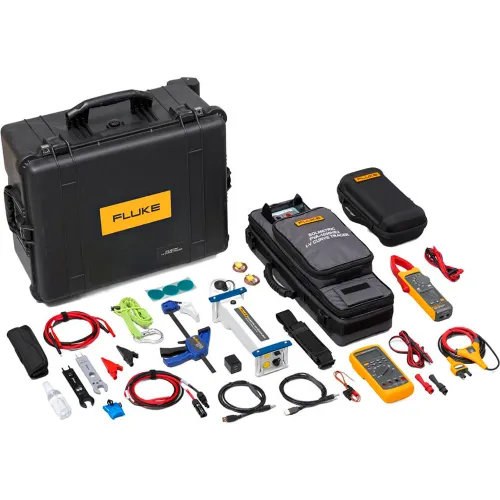

- Advanced built-in PV model provides immediate PV performance checking
- Reliably assess health/performance of PV system solar modules/arrays
- High throughput I-V curve tracing
- Intuitive user interface for easy navigation
- Real-time analysis for immediate identification of potential issues
- Aids in maximizing solar energy production, minimizing downtime
- I-V curve testing offers complete solar module performance measurement
- Curve datasets aid in detecting outliers, stored data acts as baseline for future inquiries
- Measures, displays I-V of PV string/module via capacitive load up to 1500V/30A
- Generates P-V curve, Isc, Voc, Imp, Vmp, Pmax, fill factor, performance factor
- Wireless interfaces for faster setup, safer work environment
- Accurate measurement of high efficiency modules up to 30A
- Measures all string types
- Uninterrupted measurements even in hot environments
- Sweep-to-sweep delay of 9 seconds to measure 3.5 MW in under 1 hour
- SolSensor provides irradiance, module temperature, array tilt data
- Predicts I-V curve shape at operating conditions
- Spectral response of silicon photodiode sensor is corrected for PV technology
- Two external thermocouple inputs for measuring module backside temperatures
- Data Analysis Tool (DAT) presents analysis results in multiple formats
- DAT compiles key PV parameters, flags non-conforming strings, statistical overview
- Automates data management, analysis, reporting
- Database of more than 70,000 modules with automatic updates
- In-the-field firmware update ready
- Commissioning
- Operations
- Maintenance
- Auditing
- Troubleshooting
- Designed for technicians working in DC environments up to 1500V
- Thin jaw clamp gives access to cables in crowded combiner boxes
- Test leads rated to CAT III 1500V
- IP54 rated for dusty/damp outdoor conditions
- DC power measurement shows readings in kVA
- Audio polarity indicators prevent miswires
- Visual continuity with green light display
- Log/report test results via Fluke® Connect software
- iFlex flexible current probe for tight spaces
- Solar Arrays
- Wind Power
- Electric Railways
- Data Centers
- Battery Banks
- High accuracy troubleshooting in high-energy environments
- Supports VFD measurements using low-pass filter
- Peak capture for fast intermittent signals
- Shielding blocks high-frequency noise
- CAT III 1000V / CAT IV 600V safety rating
- Withstands spikes over 8000V
- Input alert for incorrect probe placement
- Analog bar graph for unstable signals
- Touch Hold function retains readings
