- Allows for reliable assessment of health and performance of solar modules and arrays
- Intuitive user interface enables easy navigation and real-time analysis for immediate identification of potential issues
- SolSensor provides irradiance, module temperature, and array tilt data to PV model
- Measures and displays I-V curves up to 1500A and 30A, including on high-efficiency modules
- Advanced built-in PV model provides immediate PV performance checking
- Sweep-to-sweep delay of nine seconds measures 3.5MW in less than one hour
- Performs uninterrupted measurements even in hot environments
- Automates data management, analysis, and reporting
- Database of more than 70,000 modules with automatic updates
- Wireless interface for faster setup, safer work environment, and freedom of movement during PV troubleshooting
- CAT III 1500V rated for added user safety
- Engineered to simplify frontline troubleshooting on factory floors or solar installation fields
- User-selectable test voltages of 250V, 500V, 1000V, and 2500V to cover both industrial and solar applications
- Tests applications from smaller circuits to high-voltage systems with resistance measurements up to 500 GO
- Automatically calculates Polarization Index (PI) and Dielectric Absorption Ratio (DAR) for minimized environmental factor influence
- Execute up to 1300 measurements at 2500V or 6500 measurements at 250V for enhanced productivity
- Enhances testing capabilities with AC/DC voltage and resistance measurements
- Achieve faster and more stable insulation resistance measurement with short circuit current up to 5 mA
- Ramp test mode allows for linearly increasing applied test voltage 100 V/s to help identify hard-to-identify fault conditions
- Set user-defined labels, adjust test duration, and store measurement results for tailored testing experience
- Download and manage data effortlessly with PC software
- CAT IV 600V rating and built-in voltage alarm function for heightened safety during operations
- Measures both AC and DC current up to 60A for safely troubleshooting individual strings or modules with greater accuracy
- Thin jaw design makes it easy to access combiner boxes and tight spaces
- Captures AC/DC volts, AC/DC mV, AC/DC VA, continuity, resistance, capacitance, AC/DC amps, and Hz
- Bright backlit LCD screen and illuminated keypad for easier working conditions in direct and low-light conditions
- Visual and audio polarity indicators with ON/OFF function help prevent accidental module wiring issues
- User-defined limit gauge for quick GO/NO-GO troubleshooting decisions
- Unique multimeter readiness self-check helps ensure that meter is ready to test
- Save and log measurements to internal memory and view them on mobile device via Fluke® Connect
- CAT III 1500V/CAT IV 1000V rated to meet safety requirements of test equipment and PV array electrical installations

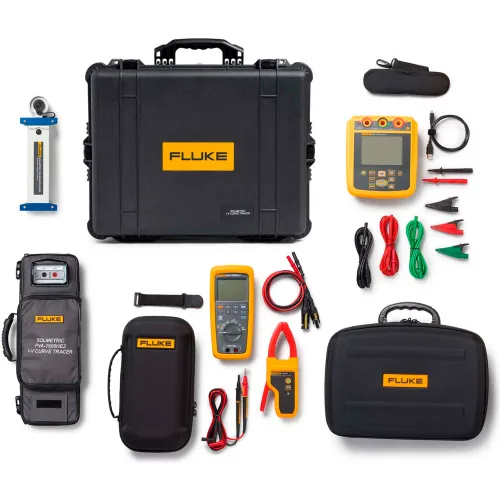

- 1 - High Efficiency PV Analyzer/I-V Curve Tracer (PVA-1500HE2)
- 1 - Soft Case
- 1 - Transit Case
- 1 - AC Wall Plug Charger
- 1 - Banana Jack-to-MC4 Test Leads, 1500V
- 1 - Banana Jack-to-Alligator Clip Test Leads, 1500V
- 1 - MC4 Connect/Disconnect Tool
- 1 - User Manual
- 1 - SolSensor Unit
- 2 - Type-K Thermocouple Temperature Sensors
