Quick release knurled nuts GN 6303.1 are used in such applications where the nut has to be completely removed after the releasing operation and refitted very rapidly for re-clamping. The nut is tilted over the threaded spindle. When in position, the nut is brought into a straight position for meshing of the two threads on nut and spindle. The nut will then have to be turned only by a fraction of a rotation to achieve clamping.

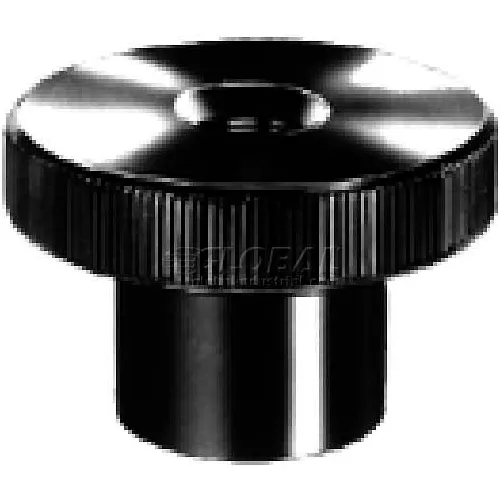

J.W. Winco GN6303.1 Quick Release Knurled Nuts, 20"(.79), M10 x 1.5
Write a Review
|
Questions & Answers (0)
Product Description
PRICE
$12.75
1
1
Ships in 3 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy
Weights & Dimensions
| Dimension D2 | 36mm(1.42) in |
| Dimension D3 | 28mm(1.10) in |
| Dimension K | 14mm(.55") |
| Dimension D4 | 11mm(.43) in |
| Dimension H | 20mm(.79") |
Product Details
| Type | Quick Release Knurled Nuts |
| Finish | Black Oxide |
| Material | Stainless Steel |
| Series | GN6303.1 |
| Manufacturers Part Number | 10NF47 |
| Brand | J.W. Winco |
