The Honeywell ML7984A4009 is a one piece, self contained, direct coupled actuator for mounting on V5011 (2 way) and V5013 (3 way) valve bodies that is self adjusting. It has a 2-10 VDC control signal and a NEMA 3R enclosure rating. Features: Self-contained one piece motorized valve linkage, Allows the use of a common transformer to power multiple actuators, Multiple mounting positions, One actuator for both 24VAC and 28VDC power supply applications, Compact size for mounting in confined spaces. Product Specifications: Description:Direct coupled, linear stroke valve actuator, Application: HVAC Valve Actuation, Fail Safe Mode: Remains in position upon power failure, Control Signal: 135 ohm modulating control, Supply Voltage: 24VAC or 28VDC, Mounting: Screws onto threaded valve stem, Adjustments: Direct/Reverse Acting Switch, Temperature Limits: 32 to 130 deg F
Share
Spec Sheet

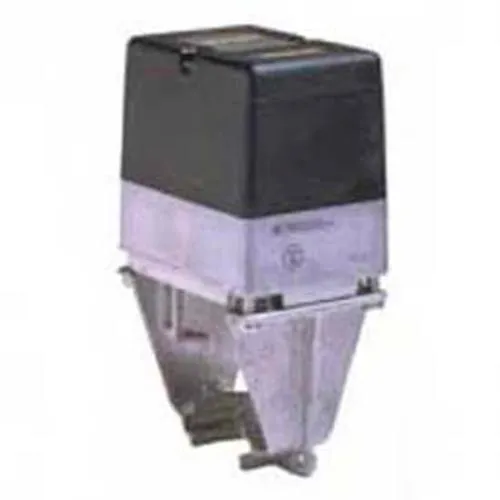

Honeywell ML7984A4009 Direct Coupled Valve Actuator
(1)
|
Questions & Answers (0)
Product Description
PRICE
$569.00
1
1
Ships in 2 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy
Specifications
Weights & Dimensions
| Length | 7 in |
| Width | 8 in |
| Height | 4 in |
| Weight | 1 lbs |
Product Details
| Type | Direct Coupled Valve Actuator |
| Switch Rating | 6 VA A |
| For Use With | Voltage - 20 Kohm, Current -237ohm |
| Voltage | 12VA V |
| Package Quantity | 1 |
| Description | Direct-Coupled, Linear-Stoke, Valve Actuator |
| Manufacturers Part Number | ML7984A4009 |
| Brand | Honeywell |
Warranty
| Warranty | 1 yr |
