Fantech 15" Roof Ventilator Belt Drive Downblast 5BDD15DB-A, 1/2 HP, 115/230V, 1 PH, 2581 CFM, ODP

Fantech 15" Roof Ventilator Belt Drive Downblast 5BDD15DB-A, 1/2 HP, 115/230V, 1 PH, 2581 CFM, ODP

Item #: WBB2146464

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

  • SELECT
  • Belt Drive
  • Direct Drive

Belt Drive

  • SELECT
  • 1/2
  • 1/3

1/2

  • SELECT
  • 2,108
  • 2,581

2,581

  • SELECT
  • 115
  • 120 / 230

120 / 230

Price: $895.00

$149.17 / month suggested monthly payments with 6 mo. special financing on the purchase of $895.00 or save 5% on purchase.

Quantity

Customers Also Viewed

Fantech 15" Roof Ventilator Belt Drive Downblast 5BDD15DB-A, 1/2 HP, 115/230V, 1 PH, 2581 CFM, ODP

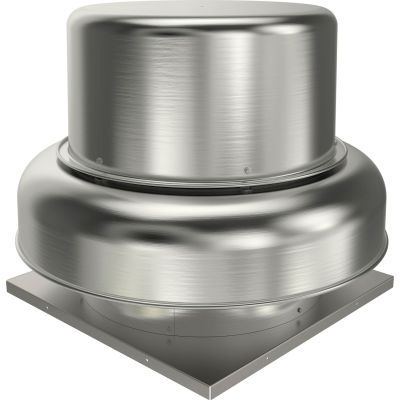

Roof mounted belt drive downblast ventilators are designed to exhaust air out of commercial and industrial buildings. These models are for roof mounting only. Motor and wheel are easily detachable without removing ventilator from curb. Permanently lubricated ball bearings (5BDD10 - 5BDD13) and regreasable pillow block bearings (5BDD15 - 5BDD24).

Features:
  • All ventilators are UL 705 Standard listed
  • Durable spun aluminum construction with steel support braces
  • Inlet temperatures up to 170°F
  • Backward inclined aluminum fan wheel
  • Equipped with a built-in bird screen to protect discharge
  • Externally cooled motor compartment

Product Specifications

  • BASE HEIGHT INCHES1-1/2
  • BRANDFantech®
  • CERTIFICATIONSAMCA Air, cULus
  • CFM HIGH2,581
  • COLOR FINISHSilver
  • CONSTRUCTIONGalvanized Steel
  • DESCRIPTIONRoof Ventilator Belt Drive Downblast
  • DRIVE TYPEBelt Drive
  • FAN DIAMETER INCHES15
  • FOR USE WITH5ACC01MS
  • HEIGHT INCHES27-3/8
  • HERTZ (HZ)60
  • HORSEPOWER1/2
  • LENGTH INCHES27-3/8
  • LIMITED WARRANTY YEARS2
  • MANUFACTURERS PART NUMBER5BDD15DB-A
  • MODEL46909
  • MOTOR TYPEODP
  • MOUNT TYPERoof
  • OPERATING TEMPERATUREUp To 170°F
  • PEAK FAN POWER INPUT (BHP)373
  • PHASE1
  • RPM HIGH1,301
  • SONES15
  • SPEED CONTROLLABLEN
  • VOLTAGE120 / 230
  • WATTS373
  • WEIGHT LBS143
  • WIDTH INCHES31-11/16
  • BASE LENGTH INCHES26
