JET

Model # :WBB3169456

MPN #: JT9-354231-4

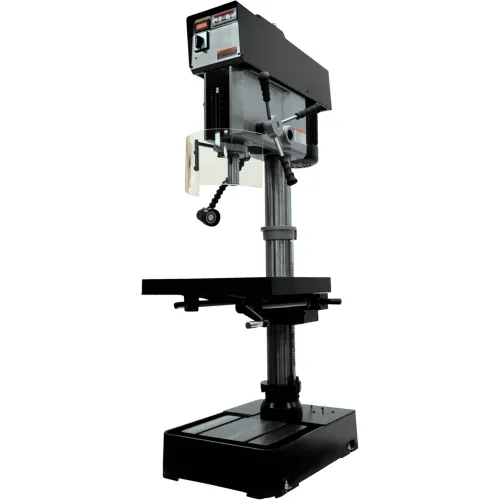

JET® JDP-20VS-3 Variable Speed Drill Press, 2 HP, 3-Phase, 230/460V

Product Description

Solid design and construction deliver precision operation and control. JET® 20" Variable Speed Drill Presses combine variable speed spindles with a massively constructed head that increases accuracy and rigidity. That's all on top of a steel column and a heavy-duty cast iron base.

Features:
  • CSA/CUS Certified
  • Front Mounted LED Spindle RPM Readout
  • Front mounted positive control depth stop
  • Head is massively constructed for more accuracy and rigidity & heavy duty cast iron design
  • Drill Chuck not included
  • Large Hand Grips designed with the users comfort in mind
  • Large precision ground T-Slot production table for easy set ups
  • Massive 3" quill diameter
  • Table rotates 360° around the column
  • Variable spindle speeds


PRICE
$6,855.00

1
1
Ships in 12 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy

Weights & Dimensions

Length38-3/16
Width27-3/16 in
Height79-1/2 in
Weight780 lbs
Size20 in
Spindle Travel6 in
Base Dimensions27 x 19 in
Drills to Center of Circle20 in
Quill Diameter3 in
Table Size (L x W)22 x 18-3/4 in
Column Diameter4-1/2 in
T-Slots Number And Size3 & 5/8 in
Drilling Capacity1-1/2 in
Spindle Distance To Base44-1/2 in
Distance Spindle To Column10-7/16 in

Product Details

Drilling Capacity Mild Steel1-3/8
Motor Voltage230/460 V
Phase3
Manufacturers Part NumberJT9-354231-4
Motor Horsepower2 HP
Spindle TaperMT-3
BrandJET
TypeVariable Speed Drill Press
Drilling Capacity Cast Iron1-1/2
Number of Spindle SpeedsVariable
Work Table Weight Capacity154 lbs
StyleDrill Press
Range of Spindle Speeds300 - 2,000 rpm
DescriptionVariable Speed Drill Press

Warranty

Warranty2 yr
