Kee Safety - 70-5 - Kee Klamp Rail Support, 3/4" Dia.

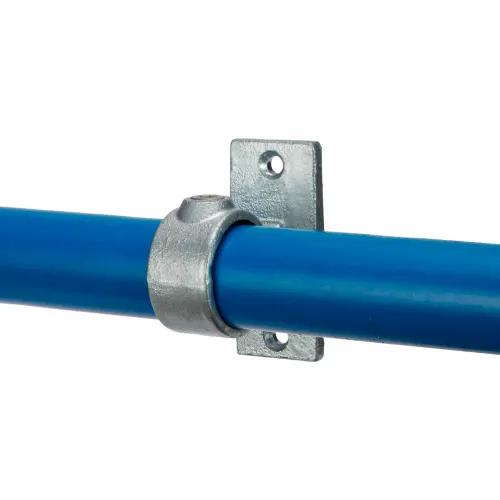

Kee Klamp® Fittings Railing Support This fitting, with holes provided for countersunk flat head screw fixings only, is designed to carry handrails along walls or to fix structures back to walls. The pipe passes through the fitting and cannot be joined within the fitting. Type 70 is also used to attach toeboards to the bases of guardrail uprights. Warning: These fittings are not to be used as base flanges for full height guardrails. 5/16" diameter fixing holes.

Kee Klamp® Fittings Corner Swivel Socket Complete combination fitting. Reducing combinations of Type C52 are available, sizes 5 to 8. For dimensions refer to Type F50 and Type M52.

Kee Klamp® Fittings Female Single Swivel Socket Member One part of a combination fitting. The Type F50, in size 4, has only one ear while Type F50, in sizes 5 through 9, has two ears. The distance between the ears on sizes 5 through 9 is 12.70mm or 1/2 inch. 3/8" diameter bolt hole.

Kee Klamp® Fittings Medium Flange This flange, with holes provided for countersunk flat head screw fixings only, is used on structures where the fixing required is positional only. Frequently used as a wall fixing bracket. 3/8"diameter fixing holes PA Warning: It is not recommended for use as a base flange to support guardrailing or balustrading.

Kee Klamp® Fittings Corner Swivel Socket Complete combination fitting. Reducing combinations of Type C52 are available, sizes 5 to 8. For dimensions refer to Type F50 and Type M52.
