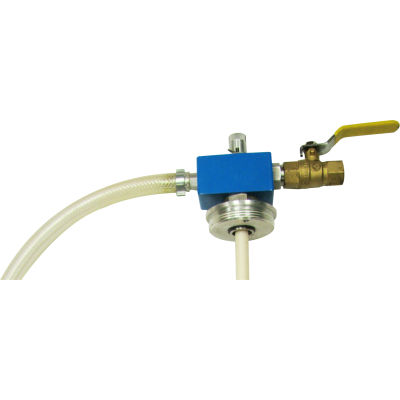

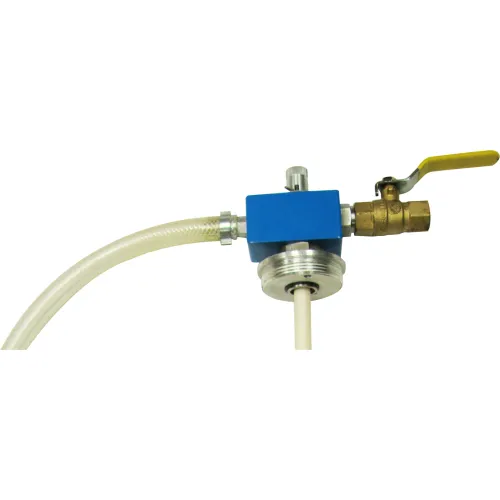

Action Pump Liquid Ratio Mixer Pump CMX2 0-57%
Advanced Coolant Mixers that are virtually maintenance free, highly accurate and provide easy & fast adjustment. Coolant / Liquid Mixers are widely used in Industry for mixing liquid coolant concentrate with water for supply to machines. These also find applications in workshops & garages for mixing water with detergents, antifreeze etc. Traditionally, the Coolant Mixers are designed either with a Needle Valve or using a set of mixing jets. Both these designs have several flaws such as cumbersome & time consuming adjustment, too many parts, prone to blockage, high chance of loosing the mixing jets which need to be stored separately etc. The compact construction & minimal parts makes them easy to install & highly reliable. Lightweight Aluminum body Driven by pressure from water supply Includes full flow Brass Ball valve & also fitted with 2 back flow preventers 0 to 57% mixing ratio, ideal for Soap Solutions. Adjustment of mixing ratio is variable & controlled through a simple turn of the knob. Inbuilt Suction Tube & 2" bung that fits directly onto 55 gal (205 litre) Coolant Drums.
Advanced Coolant Mixers that are virtually maintenance free, highly accurate and provide easy & fast adjustment. Coolant / Liquid Mixers are widely used in Industry for mixing liquid coolant concentrate with water for supply to machines. These also find applications in workshops & garages for mixing water with detergents, antifreeze etc. Traditionally, the Coolant Mixers are designed either with a Needle Valve or using a set of mixing jets. Both these designs have several flaws such as cumbersome & time consuming adjustment, too many parts, prone to blockage, high chance of loosing the mixing jets which need to be stored separately etc. The compact construction & minimal parts makes them easy to install & highly reliable. Lightweight Aluminum body Driven by pressure from water supply Includes full flow Brass Ball valve & also fitted with 2 back flow preventers 0 to 57% mixing ratio, ideal for Soap Solutions. Adjustment of mixing ratio is variable & controlled through a simple turn of the knob. Inbuilt Suction Tube & 2" bung that fits directly onto 55 gal (205 litre) Coolant Drums.
Weights & Dimensions
- Discharge Spout Diameter 0.75 in
- Thread 2 NPS (Male) in
- Suction Tube Dimension 35 in
- Width 6 in
- Diameter 3/4 in
- Length 37 in
- Height 3 in
- Weight 3 lbs
Product Details
- Assembly Required Assembled
- Mixing Ratio 0 - 57%
- Dispensing Rate 5.5 GPM
- Temperature Range 40 - 140 °F
- Type Rotary
- Brand Action Pump
- Material Aluminum, Stainless Steel, Brass, PVC, Nitrile, Nylon
- Style 15, 30 or 55 Gallon
- Power Water Powered
- Manufacturers Part Number CMX2
Customer Review
Most Recent Reviews
- Most Recent Reviews
- Highest Rated Reviews
- Lowest Rated Reviews
-
Reviewer: Kevin
Date: March 14, 2022
-
Reviewer: Anonymous
Date: May 18, 2015
Your review:
I have purchased the action pump several times and have had no issues with them we use them to dispurse our ink.
Product Q & A
There are 4 questions and 4 answers for this product.
-
Will this work on plastic drums?
Question Asked By: Matthew, December 14, 2020
Answer This Question
Question Answered By:
-
Product Expert, December 15, 2020
Hello it is not suitable for plastic drums. This model is designed for use on Steel Drums. Thank you for your question.
-
-
Does the tubing come with the Pump?
Question Asked By: zack, June 23, 2020
Answer This Question
Question Answered By:
-
Product Expert, June 24, 2020
Hello Zack, yes, the tubing shown does come with the pump. Thank you for your question.
-
-
will this work on a 5 gallon bucket?
Question Asked By: jaime maestas, October 17, 2019
Answer This Question
Question Answered By:
-
Product Expert, October 18, 2019
Hello, unfortunately no it will not. However, one designed for a 5 gallon bucket is available via special order through our sales team at 1.800.645.1232. Thank you for your question.
-
-
What is the minimum psi. this mixer requires for proper function.
Question Asked By: Kevin, February 21, 2018
Answer This Question
Question Answered By:
-
anonymous
Hello Kevin, this mixer will properly function at any PSI level. Thank you for your question.
-
