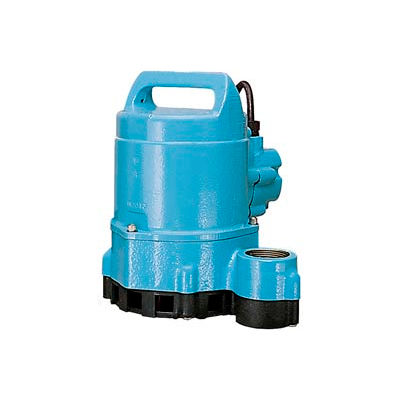

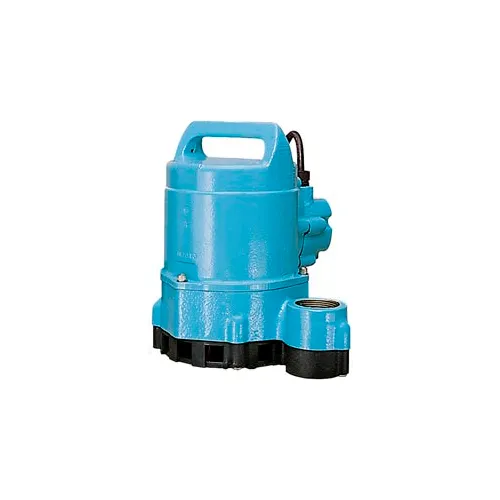

Little Giant 511610 10E Series High Temperature Manual Operation Submersible Effluent Pump
Write a Review
|
Questions & Answers (0)
Product Description
The HT-10E-CIM manual operation high temperature effluent pump is designed for light commercial and industrial use. This pump can be used to transfer or circulate wastewater up to 200 degrees farenheit and can handle 3/4" solids. Continuous duty rated.
PRICE
$789.00
1
1
Ships in 10 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy
Weights & Dimensions
| Length | 9-5/8 in |
| Width | 9-1/8 in |
| Height | 10-1/4 in |
| Weight | 39 lbs |
| Cord Length | 15 ft |
| Max Diameter Solids | 3/4 in |
| Discharge Connection Size | 1-1/2 in |
| Min Sump Pit Diameter | 18 |
Product Details
| Max Fluid Temperature | 200 °F |
| Impeller Material | Nylon Vortex |
| Phase | 1 |
| Discharge Connection Type | FNPT |
| Manufacturers Part Number | 511610 |
| Temperature of Liquid Pumped | 200 |
| Brand | Little Giant |
| Solids Handling | Yes |
| Type | High Temperature Submersible |
| Horsepower | 1/2 HP |
| Color | Blue |
| Amperage | 10.5 A |
| Series | 10E |
| Hertz | 60 Hz |
| Switch Type | Manual |
| Voltage | 115 V |
| Gallons per Hour | 4800 gal/hr |
| Housing Material | Epoxy Coated Cast Iron |
| Base Material | Cast Iron |
| Shaft Seal Material | Carbon/Ni-Resist & Viton Face Seal |
Warranty
| Warranty | 3 |
Compliance & Certifications
| Certifications | CSA |
