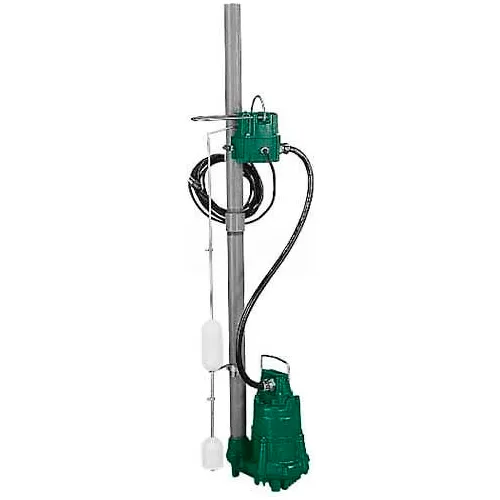

Zoeller M3098 Automatic High Temperature Submersible Pump 3098-0001, 1/2 HP
Write a Review
|
Questions & Answers (0)
Product Description
Zoeller M3098 automatic high temperature submersible pump for use in dewatering applications up to 200 degrees. Conduit length is 3 feet (0.9 m) - Power cord length is 15 feet - High temperature liquid-tight conduit used with high temperature cable - High temperature motor windings - High temperature Viton® gaskets - High temperature thermal overload protected - All control components in contact with water are high temperature rated - Float operated mechanical switch box which is mounted on the discharge pipe above the operating level (switch box is not intended to come in continuous contact with 200° F [93°C] water) - Mechanical seal has NI-Resist rotary face and Viton® elastomeric - Corrosion-resistant, powder coated epoxy finish .
PRICE
$2,209.00
1
1
Ships in 15 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy
Weights & Dimensions
| Height | 27 in |
| Weight | 52 lbs |
| Cord Length | 15 ft |
| Switch Off Height | 2 in |
| Switch On Height | 24 in |
| Max Head | 21 ft |
| Max Diameter Solids | 1/2 in |
| Discharge Connection Size | 1-1/2 in |
| Min Sump Pit Diameter | 18 |
Product Details
| Max Fluid Temperature | 200 °F |
| Impeller Material | Cast Iron |
| Phase | 1 |
| Discharge Connection Type | NPT |
| Manufacturers Part Number | 3098-0001 |
| Submersible | Yes |
| Brand | Zoeller |
| Solids Handling | Yes |
| Type | High Temperature Submersible |
| Horsepower | 1/2 HP |
| Color | Green |
| Amperage | 9.4 A |
| Series | High Temperature 3000 |
| Hertz | 60 Hz |
| Switch Type | Automatic |
| Voltage | 115 V |
| Gallons per Hour | 3960 gal/hr |
| Housing Material | Cast Iron |
| Base Material | Cast Iron |
| Shaft Seal Material | Carbon and NI-resist w/ Viton elastomers |
Warranty
| Warranty | 1 yr |
Compliance & Certifications
| Certifications | CSA, SSMPA |
