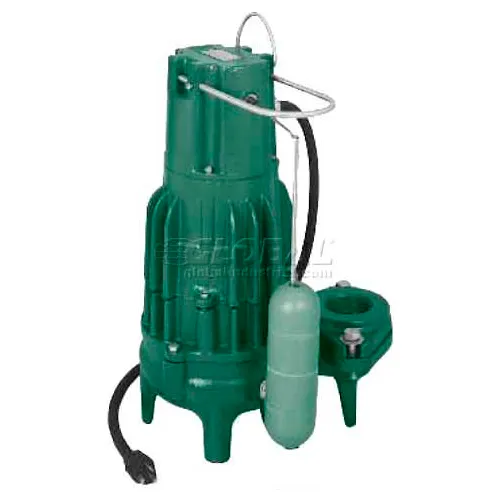

Zoeller Waste-Mate M292 Automatic High Head Submersible Sewage Pump 292-0001, 1/2 HP
Write a Review
|
Questions & Answers (0)
Product Description
Zoeller M292 automatic High head waste-mate submersible Sewage or dewatering pump. This pump has 2" NPT discharge which passes 2" spherical solids. Integral float operated mechanical switch, no external control required. The sizing of effluent systems normally requires variable level float(s) controls and properly sized basins to achieve required pumping cycles. Durable cast iron constructed switch case, base, motor and pump housing - No sheet metal parts to rust or corrode - All cast iron class 25-30 25000# tensile strength - Stainless steel screws, bolts, float rod, handle, guard, arm and seal assembly - Shaft seal - stainless steel carbon & ceramic rotary - Corrosion-resistant, powder coated epoxy finish .
PRICE
$1,449.00
1
1
Ships in 12 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy
Weights & Dimensions
| Length | 19-5/16 in |
| Width | 19-5/16 in |
| Height | 12-1/8 in |
| Weight | 87 lbs |
| Cord Length | 20 ft |
| Switch Off Height | 5-1/4 in |
| Switch On Height | 15-3/4 in |
| Max Head | 42 ft |
| Max Diameter Solids | 2 in |
| Discharge Connection Size | 2 in |
| Min Sump Pit Diameter | 18 |
Product Details
| Max Fluid Temperature | 130 °F |
| Rotations per Minute | 3450 rpm |
| Gallons per Minute | 140 gal/min |
| Impeller Material | Bronze |
| Material | Cast Iron |
| Phase | 1 |
| Discharge Connection Type | FNPT |
| Manufacturers Part Number | 292-0001 |
| Submersible | Yes |
| Brand | Zoeller |
| Solids Handling | Yes |
| Type | Submersible High Head Sewage Pump |
| Horsepower | 1/2 HP |
| Color | Green |
| Amperage | 15 A |
| Series | High Head Waste Mate |
| Hertz | 60 Hz |
| Switch Type | Automatic |
| Voltage | 115 V |
| Gallons per Hour | 8400 gal/hr |
| Base Material | Cast Iron |
| Shaft Seal Material | Carbon/ceramic |
Warranty
| Warranty | 1 yr |
Compliance & Certifications
| Certifications | CSA, SSMPA, UL |
