Modine

Model # :WBB936342

MPN #: V247SB01SA

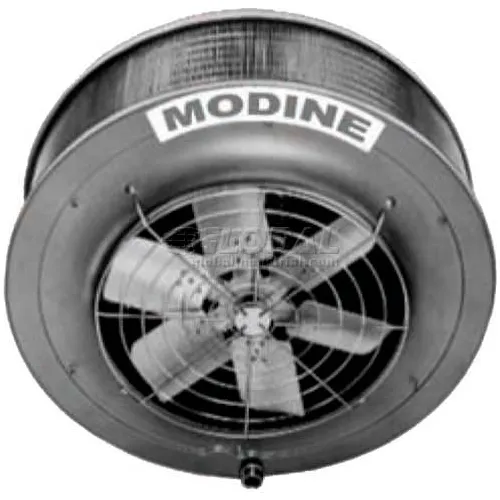

Modine Vertical Unit Heater V247SB01SA, 247000 BTU, 4820 CFM, 115V

Product Description
Modine Vertical Unit Heater V347S01, 247000 BTU, 4820 CFM, 115V

Vertical delivery unit heaters are ideal for heating buildings with high ceilings or areas that require the heater to be mounted above obstructions such as crane ways. Selection from a variety of heat throw patterns is made easy by choosing from four types of air deflectors. Heat throw patterns range from a high-velocity narrow jet to a gentle-velocity broad based cone of heated air.

Must be installed by a licensed contractor. ETL Listed. MADE IN U.S.A. 1 Year Limited Warranty.

Click below to view the following:
PRICE
$3,699.00

1
1
Ships in 90 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy

Weights & Dimensions

Height18-5/8 in
Diameter34-3/4 in
Max Mounting Height36 ft
Heat Spread28 ft

Product Details

Hot Water Final Air Temperature98 °F
Water Flow19.7 gal/min
MaterialSteel
Phase1
Manufacturers Part NumberV247SB01SA
BrandModine
TypeSteam & Hot Water Heater
CFM4820 CFM
Horsepower1/2 HP
ColorGray
Amperage7.5 A
Steam Final Air Temperature111 °F
Airflow DirectionVertical
Input (BTU/H) 2 lb Steam 60°F Entering Air247000 BTU/hr
Voltage120 V
IncludesElectric Junction Box, Outlet Fan Guard, Copper Tubing
Amps High7.5 A
Power Cord TypeElectric Junction Box
Output (BTU) Hot Water 200°F In 60°F Entering Air188700 BTU

Warranty

Warranty1 yr

Compliance & Certifications

CertificationscETLus, cCSAus
