AmScope T600A-PCT-10M 40X-1600X Turret Phase Contrast Trinocular Microscope with 10MP Camera

AmScope T600A-PCT-10M 40X-1600X Turret Phase Contrast Trinocular Microscope with 10MP Camera

Item #: WBM00516

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

Frequently Purchased Together

  • Global Industrial OTG Visitor Safety Glasses, Clear Frame, 1 Each - Pkg Qty 12

    $15.00

  • Unisex Lab Coat - White L

    $22.25

$3,407.99 up to 50% OFF

Price: $1,703.99

$284.00 / month suggested monthly payments with 6 mo. special financing on the purchase of $1,703.99 or save 5% on purchase.

Quantity

Customers Also Viewed

AmScope T600A-PCT-10M 40X-1600X Turret Phase Contrast Trinocular Microscope with 10MP Camera

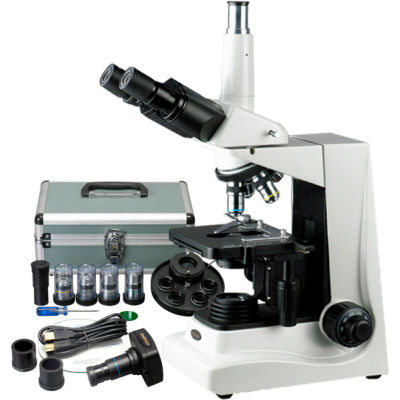

This professional trinocular microscope offers turret phase contrast features. This microscope comes with 10MP digital camera, 30° inclined 360° swiveling compensation free trinocular head, 3-D mechanical stage and intensity-variable halogen illumination system. The phase contrast kit includes a turret phase contrast condenser, CT lens and a set of phase contrast 10X, 20X, 40X & 100X PLAN objectives.

Features:
  • A Turret Phase Contrast Microscopy System
  • Perfect for Clinics, Vets, Doctors and Researchers
  • Quadruple, Reversed, Extra-Large Nosepiece with Wide, Knurled Grip for Easy Operation
  • 30° Inclined 360° Swiveling Compensation-free Trinocular Head
  • Trinocular port with both C-mount and 23mm universal photo mount for attaching video or camera
  • Large 3-D Double Layer Mechanical Stage with Stain Resistant Finish
  • Low Position Coaxial Stage Movement Control Knobs
  • Coaxial Coarse & Fine Focusing with CA Knob Tension Control
  • Fully Coated Optical System with High Resolution
  • Crystal Clear Sharp Images
  • High Quality Professional Grade Microscope
  • Eight Bright Field Magnification Settings: 40X-64X-100X-160X-400X-640X-1000X-1600X
  • Eight Phase Contrast Magnification Settings: 100X-160X-200X-320X-400X-640X-1000X-1600X
  • Upward Stage Stopper to Protect Slides and Objectives
  • Abbe Condenser with Iris Diaphragm & Swing-In Color Filter
  • Rack and Pinion Control for Condenser
  • Built-in Halogen Illumination System with Variable Brightness
  • Focusing Control Knobs on Both Sides
  • Four DIN Achromatic Objectives
  • Four Phase Contrast DIN Achromatic Plan Objectives
  • Two Sets of Eyepiece Included
  • Full Optical Glass Elements
  • Precise Ground Glass Lens
  • All Metal Mechanical Components
  • Adjustable Interpupillary Distance
  • Adjustable Diopters on Both Oculars
  • Rugged Cast Alloy Frame and Stand with Stain Resistant Enamel Finish
  • Spare Bulb, Fuse and Immersion Oil Included
  • Plan-Concave Mirror Included
  • Manufactured Under ISO 9001 Quality Control Standard
  • 5-Year Factory Warranty
Specifications:
  • Phase Contrast: Turret
  • Nosepiece: ball bearing quadruple
  • Mechanical Tube Length: 6-5/16" (160mm)
  • Head: compensation free trinocular inclined at 30°
  • Wide-Field Eyepieces: WF10X & P16X
  • Interpupillary Distance: 2-3/16" - 3" (55-75mm)
  • Achromatic Objectives: 4X (0.1), 10X (0.25), 40X (0.65, spring), 100X (1.25, spring, oil)
  • Phase Contrast Plan Objectives: Plan PH 10X(0.25), PH 20X(0.40), PH 40X(0.65), & PH 100X(1.25) (160/0.17)
  • Stage Dimensions: 5-1/2"x 6-5/16" (140x160mm)
  • Stage Traveling Range: 2-3/4"x 2.0" (70x50mm)
  • Focusing Range: 1-3/16" (30mm)
  • Division of Fine Focusing: 0.0000787" (0.002mm)
  • Abbe Condenser: NA=1.25 with rack and pinion focusing control
  • Microscope Dimensions: 10" x 9" x 16"
  • Illumination: 6V/20W halogen lamp
  • Power Supply: 110V/220V, CE certified
  • Accessories: 6V/20W spare halogen bulb, 2" plan-concave mirror, bottle of objective oil, and blue, green & yellow filters
Camera Specifications:
  • Sensor: Aptina MT9J003
  • Sensor Type: CMOS
  • Sensor Size: 6.44x4.616mm
  • Pixel Size: 1.67
  • Resolution: 10.0MP
  • Frame Rate: 1.9@3584x2748, 8@1792x1374, 27@896x684
  • Sensitivity: 0.31 V/lux-sec
  • Compatibility: Windows (32/64 bit) XP/Vista/7/8/10, Mac OSX, Linux

Product Specifications

  • BRANDAmScope
  • MANUFACTURER PART NUMBERT600A-PCT-10M
  • DESCRIPTIONTurret Phase Contrast Trinocular Microscope with 10MP Camera
  • MATERIALMetal
  • COLORWhite
  • SENSORCMOS
  • MAGNIFICATION RANGE40X-1600X
  • OPTICSAchromatic
  • FIELD VIEWWidefield
  • HEAD TYPETrinocular
  • OBJECTIVE4X, 10X, 40X, 100X
  • EYEPIECE MAGNIFICATION10X, 16X
  • EYEPIECE23mm
  • CAMERA PIXEL10MP
  • LIGHT SOURCEHalogen
  • LIGHT POWER20W
  • NUMBER OF LIGHT BULBS1
  • STAGETwo-layer Mechanical Stage
  • STAGE DIV1.00mm
  • CONDENSERAbbe-Rack & Pinion with Diaphragm
  • CONDENSER TYPEBrightfield, Phase Contrast
  • CONDENSER OPTICSNA 1.25
  • IRISWith Iris
  • POWER SUPPLY110V/220V
  • TYPECompound Microscope
  • REDUCTION LENS0.5X
  • OPERATING SYSTEMWindows XP/Vista/7/8/10, Mac OSX, Linux
  • PACKAGE QUANTITY1
  • LIMITED WARRANTY5 Years
  • APPLICATIONClinic, Veterinary, Laboratory
