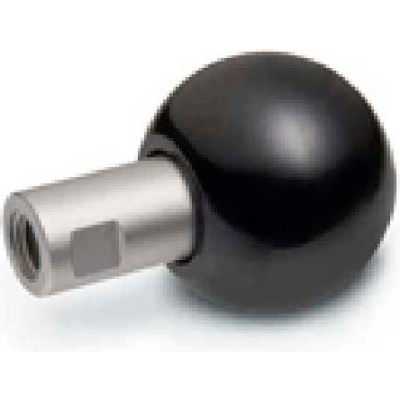

J.W. Winco GN319.5 Phenolic Revolving Ball Knob W/Long Shoulder Tapped 40mm Dia. 61mm L 3/8-16

J.W. Winco GN319.5 Phenolic Revolving Ball Knob W/Long Shoulder Tapped 40mm Dia. 61mm L 3/8-16

Item #: WBB1505015

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

Price: $19.50

Save $0.98 with 5% off when you use your Global Industrial Credit Card.

Quantity

Customers Also Viewed

J.W. Winco GN319.5 Phenolic Revolving Ball Knob W/Long Shoulder Tapped 40mm Dia. 61mm L 3/8-16

Revolving ball knobs GN 319.5 can be utilized instead of revolving handles i.e. with handwheels. The tapped shoulder allows the revolving ball knob to be mounted from the underside via a screw or bolt, which can then be easily mounted to sheet metal in a variety of thicknesses, flat bar, or castings, to create a quick cranking or turning mechanism. Maximum heat resistance: 110°C (230°F).

Product Specifications

  • MATERIALPhenolic Plastic
  • BRANDJ.W. Winco
  • DESCRIPTIONRevolving Ball Knob w/ Long Shoulder
  • t MIN. MM16
  • DIAMETER40
  • t MIN. INCHES0.63
  • MANUFACTURERS PART NUMBER319.5-40-3/8X16-B
  • d1 INCHES1.57
  • d1 MM40
  • TYPETapped
  • l3 INCHES0.94
  • l3 MM24
  • l2 INCHES2.4
  • d2 THREAD3/8-16
  • l2 MM61
  • LENGTH61
  • SERIESGN319.5
  • d4 INCHES0.63
  • THREAD3/8-16
  • d4 MM16
