Marathon Motors Metric Motor, R310, 80T17FH5326, 3/4-.55HP, 3600RPM, 230/460V, 3PH, 80 FR, TEFC

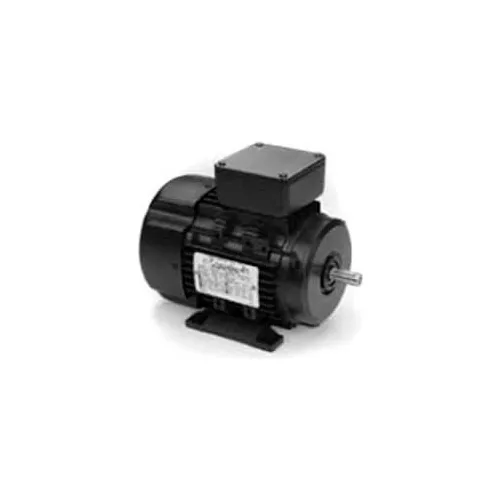

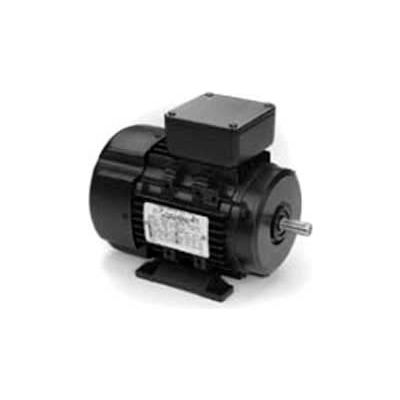

Actual product may differ from image shown

Marathon Motors Metric Motor, R310, 80T17FH5326, 3/4-.55HP, 3600RPM, 230/460V, 3PH, 80 FR, TEFC

Item #: WBB870572

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

Price: $388.95

Save $19.45 with 5% off when you use your Global Industrial Credit Card.

Quantity

Marathon Motors Metric Motor, R310, 80T17FH5326, 3/4-.55HP, 3600RPM, 230/460V, 3PH, 80 FR, TEFC

Marathon's line of Metric Dimension Motors are designed in IEC Frames from D63 through D200L. The motors are available from stock in 50 Hz or 60 Hz. This means that replacement 60 Hz motors are readily available from Marathon to replace metric motors.

Product Details

  • 60 Hertz kW 0.56 kW
  • Mounting Location Rigid
  • Assembly Required F3
  • Bearing Drive End 6204
  • 50 Hertz Kilowatts 0.56 kW
  • Ambient Temperature 40 °C
  • Nameplate RPM 3600 rpm
  • KVA Code H
  • IP Code 55
  • Insulation Class F
  • RPM Range 3001-3600 rpm
  • 50 Hertz SF 1.15
  • 50 Hertz Horsepower 3/4 HP
  • Bearing Opp Drive End 6204
  • Voltage 230/460 V
  • Frame 80
  • Service Factor 1.15
  • Horsepower 3/4 HP
  • Enclosure Type Totally Enclosed
  • Is_Motor Yes
  • Duty Continuous
  • Phase 3
  • Enclosure TEFC
  • Orientation Horizontal
  • Starting Type Line or Inverter
  • 50 Hertz RPM 1500 rpm
  • Full Load Efficiency 0.74
  • Brand Marathon Motors
  • Full Load Amps 2.5/1.25 FLA
  • Motor RPM 60 Hertz 3600 rpm
  • Manufacturers Part Number R310
  • 50 Hertz Full Load Amps 2.9/1.45 FLA
  • 50 Hertz Voltage 200/400 V

Compliance & Certifications

  • NEMA Design B
  • CSA Certified Y
  • UL Recognized Construction
  • CE Approved Y

Weights & Dimensions

  • Drive End Bearing Size 6204
  • Opposite End Bearing Size 6204
  • Weight 23
