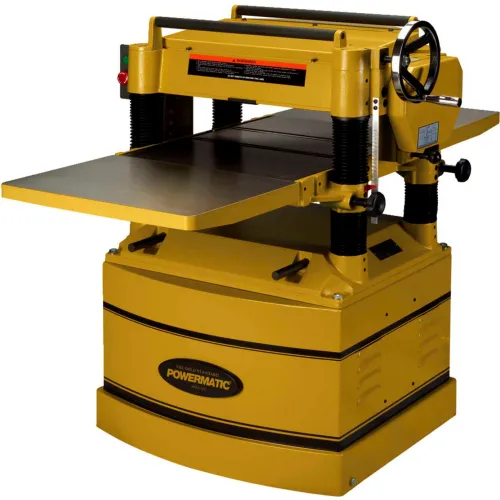

Powermatic 1791297 Model 209 5HP 3-Phase 230V 20" Planer

Powermatic 1791297 Model 209 5HP 3-Phase 230V 20" Planer

Item #: WBB57938

Not Yet Rated

Free Shipping

$3,685.71 up to 19% OFF

Price: $2,999.99

$500.00/mo suggested payments with 6 month special financing OR Save 5%on Purchase.
We will notify you when this product is back in stock.

Customers Also Viewed

This heavy duty planer offers performance and value, loaded with standard features not found on other machines in its class. The powerful 5HP motor and 20 planing capacity will handle the most demanding work. The 5" dust port connects easily to any dust collector. The cutterhead has four high speed steel knives and turns at 5,000 RPM producing 20,000 cuts per minute. The anti-kickback fingers and pressure bar are located in close proximity to the cutterhead for an exceptional finish. The solid cast iron base, table and head are designed for production. The 2-speed oil bath gearbox transmits full power to feed rollers and facilitates fast speed changes at 24 and 31 FPM. The gearbox can be changed to 4-speed with the included gear to run lower speeds of 16 and 20 FPM. The corrugated infeed and fine groove outfeed rollers ensure a smooth feed. The precision ground and polished cast iron table rides on four steel columns giving it plenty of support for the larger workpiece. Heavy cast iron extension wings ensure a flat, smooth cut.

Features:

  • Knife setting gauge
  • 5HP motor and 20 planing capacity for heavy duty work
  • Fully enclosed base cabinet with integrated casters for shop mobility
  • Cast iron table with extensions creates a big 55-1/2 x 20" working area
  • Four feed speeds - 24 and 31 FPM, 16 and 20 FPM with gear change - provide versatility
  • Feed rollers and cutterhead supported by full cast iron head assembly for rigidity
  • 460V operation requires an additional 460V magnetic switch: 209-5016E
  • Single-sided knives
  • 5 diameter dust port

  • FEED RATE (FPM) 24/31 & 16/20(W/Gear Change)
  • PREWIRED VOLTAGE 230
  • MOTOR PHASE 3
  • MOTOR HORSEPOWER 5
  • DUST COLLECTION MINIMUM REQUIRED (CFM) 900
  • DUST PORT DIAMETER INCHES 5
  • TABLE SIZE INCHES (L X W) 25-3/4 X 20
  • BLADE SIZE (IN.) 20 x 1 x 1/8
  • MAXIMUM DEPTH OF CUT INCHES 3/32
  • AMPS 14/7
  • BRAND Powermatic
  • MANUFACTURERS PART NUMBER 1791297
  • TYPE Planer
  • MODEL 209
  • VOLTAGE 230/460
  • NUMBER OF KNIVES OR INSERTS 4
  • CUTTERHEAD DIAMETER INCHES 3-3/16
  • CUTS PER MINUTE 20000
  • CUTTERHEAD SPEED (RPM) 5000
  • MAXIMUM PLANING THICKNESS INCHES 8
  • MAXIMUM PLANING WIDTH INCHES 20
  • TYPE OF CUTTERHEAD Knives
  • APPROVALS OR CERTIFICATIONS CSA Certified
  • MINIMUM PLANING LENGTH INCHES 6-3/4
  • MAXIMUM FULL WIDTH DEPTH OF CUT INCHES 3/32
  • STYLE Floorstanding
  • MANUFACTURERS LIMITED WARRANTY YEARS 5
