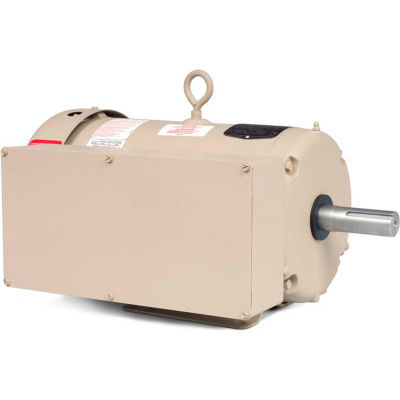

Baldor-Reliance Motor FDL3612TM, 5HP, 1725RPM, 1PH, 60HZ, 184T, 3646LC, TEFC, F1

Actual product may differ from image shown

Baldor-Reliance Motor FDL3612TM, 5HP, 1725RPM, 1PH, 60HZ, 184T, 3646LC, TEFC, F1

Item #: WBB389898

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$1,304.00 up to 15% OFF

Price: $1,109.00

$184.83 / month suggested monthly payments with 6 mo. special financing on the purchase of $1,109.00 or save 5% on purchase.

Quantity

Customers Also Viewed

Baldor-Reliance Motor, 5HP,1725RPM,1PH,60HZ,184T,3646LC,TEFC,F1

Features:
  • Ball bearings, lubricated with high temperature moisture-resistant grease
  • Condensation drains
  • Gasketed cast conduit boxed
  • Farm duty epoxy paint for protection from harsh environments
  • 1.00 Service Factor
Typical Applications:
Wide variety of agri-duty and industrial applications.

Product Specifications

  • HORSEPOWER5
  • ENCLOSURETEFC
  • FRAME184T
  • BRANDBaldor-Reliance
  • MOUNTINGRigid
  • MOTOR RPM 60Hz1725
  • RPM1725
  • PHASE1
  • VOLTAGE230
  • HERTZ60
  • SERVICE FACTOR1
  • AMBIENT TEMP C40
  • ENCLOSURE TYPETotally Enclosed
  • WEIGHT99
  • RPM RANGE1701-1800
  • 208V AMPS--
  • KVA-CODEJ
  • is_motorYes
  • POWER-FACTOR88
  • FL EFFICIENCY80
  • SERIAL-NUMBER--
  • SPEC. NUMBER36M950W279
  • BEARING-DRIVE-END6206
  • DESIGN CODEL
  • OPPOSITE END BEARING SIZE6205
  • DOE-CODE--
  • FL AMPS23
  • MANUFACTURER PART #FDL3612TM
  • DRIVE END FLANGEStandard
  • C-DIMENSION INCHES18.05
  • POLES4
  • INSULATION CLASSF
