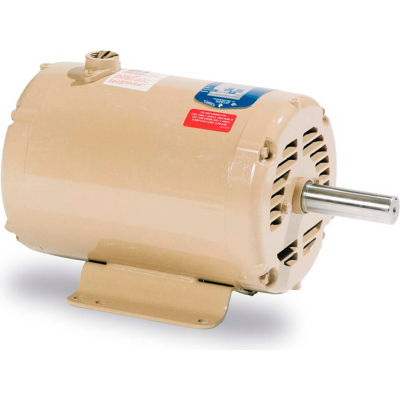

Baldor-Reliance Motor UCC7100, 7.5-10 AIR OVERHP, 3450RPM, 1PH, 60HZ, 184TZ

Actual product may differ from image shown

Baldor-Reliance Motor UCC7100, 7.5-10 AIR OVERHP, 3450RPM, 1PH, 60HZ, 184TZ

Item #: WBB390609

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$1,114.00 up to 20% OFF

Price: $890.00

$148.33 / month suggested monthly payments with 6 mo. special financing on the purchase of $890.00 or save 5% on purchase.

Quantity

Customers Also Viewed

Baldor-Reliance Motor, 7.5-10 AIR OVERHP,3450RPM,1PH,60HZ,184TZ

Features:
  • TEAO design prevents entrance of rodents, insects and other foreign matter
  • High full load efficiency for reduced operating cost
  • No mechanical switch to wear
  • No noise and vibration from regeneration
  • Less sensitive to voltage variations
  • Soft start
  • Thermostats
  • Epoxy paint
  • 1.00 Service Factor
Typical Applications:
Specifically engineered for use on vane axial fan crop dryers.

Product Specifications

  • HORSEPOWER7 1/2
  • ENCLOSUREOPEN
  • FRAME184TZ
  • BRANDBaldor-Reliance
  • MOUNTINGRigid
  • MOTOR RPM 60Hz3450
  • RPM3450
  • PHASE1
  • VOLTAGE230
  • HERTZ60
  • SERVICE FACTOR1
  • AMBIENT TEMP C40
  • ENCLOSURE TYPEOpen/Drip Proof
  • WEIGHT80
  • RPM RANGE3001-3600
  • 208V AMPS--
  • KVA-CODED
  • is_motorYes
  • POWER-FACTOR95
  • FL EFFICIENCY85.5
  • SERIAL-NUMBER--
  • SPEC. NUMBER36F548W881
  • BEARING-DRIVE-END6206
  • DESIGN CODE-
  • OPPOSITE END BEARING SIZE6205
  • DOE-CODE--
  • FL AMPS28-39
  • MANUFACTURER PART #UCC7100
  • DRIVE END FLANGEStandard
  • C-DIMENSION INCHES16.88
  • POLES2
  • INSULATION CLASSF
