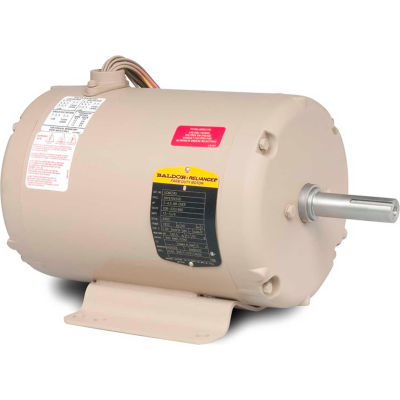

Baldor-Reliance Motor UCME153, 1.5-3HP, 3450RPM, 3PH, 60HZ, 145TZ, 3524M, TEA

Actual product may differ from image shown

Baldor-Reliance Motor UCME153, 1.5-3HP, 3450RPM, 3PH, 60HZ, 145TZ, 3524M, TEA

Item #: WBB390624

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$668.00 up to 20% OFF

Price: $534.00

$89.00 / month suggested monthly payments with 6 mo. special financing on the purchase of $534.00 or save 5% on purchase.

Quantity

Customers Also Viewed

Baldor-Reliance Motor, 1.5-3HP,3450RPM,3PH,60HZ,145TZ,3524M,TEA

Features:
  • Shaft 3/4 longer than NEMA standard
  • Shaft keyed, drilled and tapped with internal 1/4-20 tap 1 deep
  • 1.00 Service Factor
  • Thermostats
  • Epoxy paint
Typical Applications:
Specifically engineered for use on vane axial fan crop dryers.

Product Specifications

  • HORSEPOWER1 1/2
  • ENCLOSURETEAO
  • FRAME145TZ
  • BRANDBaldor-Reliance
  • MOUNTINGRigid
  • MOTOR RPM 60Hz3450
  • RPM3450
  • PHASE3
  • VOLTAGE208-230/460
  • HERTZ60
  • SERVICE FACTOR1
  • AMBIENT TEMP C40
  • ENCLOSURE TYPETotally Enclosed
  • WEIGHT42
  • RPM RANGE3001-3600
  • 208V AMPS8.5
  • KVA-CODEL
  • is_motorYes
  • POWER-FACTOR83
  • FL EFFICIENCY80
  • SERIAL-NUMBER--
  • SPEC. NUMBER35T931S057G1
  • BEARING-DRIVE-END6206
  • DESIGN CODEB
  • OPPOSITE END BEARING SIZE6203
  • DOE-CODE--
  • FL AMPS8.5-8.2/4.1
  • MANUFACTURER PART #UCME153
  • DRIVE END FLANGEStandard
  • C-DIMENSION INCHES13.37
  • POLES2
  • INSULATION CLASSF
